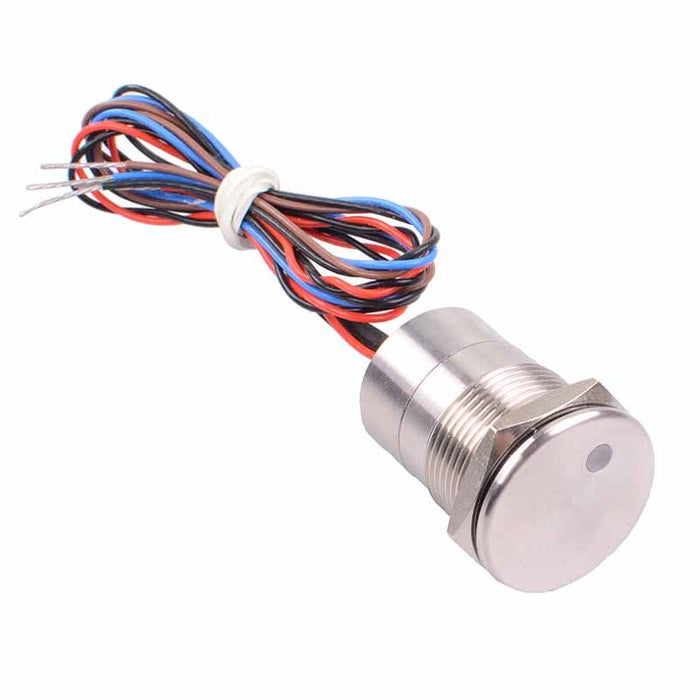

Red Dot LED On-Off 19mm Metal Latching Piezo Switch SPST
by Langir
SKU 482232
MPN: PZ-19A0FE1NOLR, height 1.3mm, flat head
Back Order Availability: 45 Days
Availability:
50 in stock, ready to be shipped
Original price
£28.42
-
Original price
£28.42
Original price
£28.42
Inc VAT
£28.42
-
£28.42
Current price
£28.42
Inc VAT
Red dot latching piezo switch featuring a sealed and vandal proof design providing solid state switching. The switch has a life expectancy of over 50 million cycles and is ideal for demanding applications where reliability is critical.
NO latching function Red LED Dot 12VDC illumination 19mm panel cut-out diameter 1.3mm height flat operator 22mm diameter head Flying leads Rating: 200mA 24VAC/DC
Specification
| Actuation | Latching |
| Back order lead time | 45 Days |
| Colour | Red |
| Contact configuration | SPST |
| Contact rating | 0.2A 24V |
| Current rating | 0.2A |
| Electrical life | 50,000,000+ Cycles |
| Illuminated | Yes |
| Illumination colour | Red |
| Illumination voltage | 12VDC |
| Material | Aluminium |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -40°C to +75°C |
| Panel cut out | 19mm |
| Protection level | IP68 |
| Switch operation | On-Off |
| Terminal type | Flying Leads |
| Voltage rating | 24VDC |
