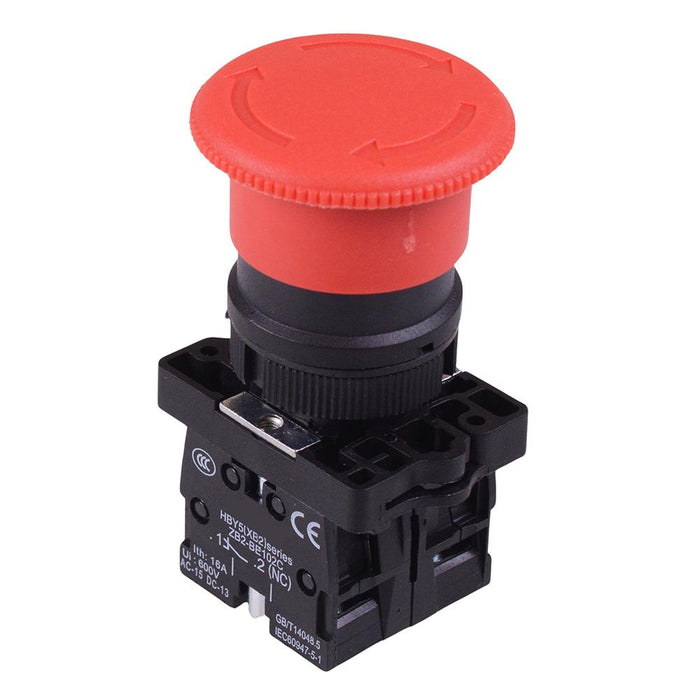

Red Emergency Stop 22mm Switch 40mm Head NO/NC

SKU 490304

MPN: HBY5E-11TS

Availability:
44 in stock
Original price £5.04 - Original price £5.04
Original price
£5.04
£5.04 - £5.04
Current price £5.04
Red industrial e-stop switch featuring NO and NC contacts, suitable for 22mm panel cut-outs. The switch features 10A rated contact blocks and is terminated using the screw terminals. The switch is suitable for a wide range of industrial applications.

  • Corrosion resistant plastic construction
  • Interchangeable contact blocks
  • Panel thickness: 5mm max
  • Panel cut-out: 22mm
  • Rated insulation voltage: 400V
  • Rated thermal current: 10A
  • NO/NC contacts
  • Head diameter: 39.3mm
  • Specification
    Actuation Twist Release
    Back Order Lead Time 45 Days
    Colour Red
    Contact Configuration 1NO-1NC
    Contact Rating 10A 400V
    Current Rating 10A
    Electrical Life 50,000 Cycles
    Illuminated No
    MOQ 1
    Mounting Style Panel
    Number of Positions 2
    Operating Temperature -25°C to +65°C
    Panel Cut Out 22mm
    Panel Thickness 5mm
    Terminal Type Screw
    Voltage Rating 400V
