Red Flashing 10mm Water Clear LED 1560mcd 30°
by OptoSupply
SKU 484931
MPN: OSHR0X31A
Availability:
168 in stock
Original price
£0.27
-
Original price
£0.27
Original price
£0.27
£0.27
£0.27
-
£0.27
Current price
£0.27

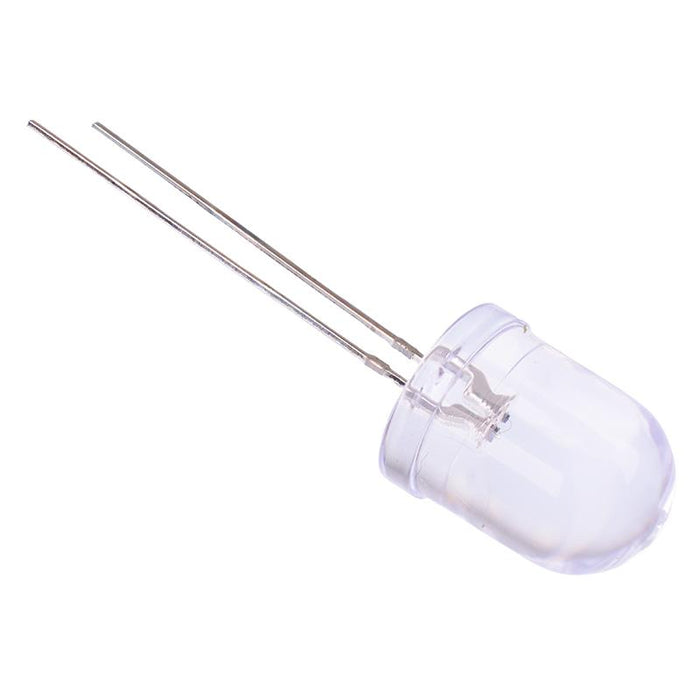

Red 10mm flashing LED featuring a water clear package and 1560mcd luminous intensity suitable for applications including use as indicators, backlighting and illumination.
Luminous intensity: 1560mcd Wavelength: 625nm Flashing rate: 1.5Hz Viewing angle: 30° Forward voltage: 5V Forward current: 25mA Suitable for through-hole mounting Cathode identified as the shorter lead 2.54mm lead pitch Water clear lens Excellent weather resistance Long lifespan
Specification
| Back Order Lead Time | 7 |
| Colour | Red |
| Diameter | 10mm |
| Flashing Rate | 1.5Hz |
| Forward Current | 25mA |
| Forward Voltage | 5V |
| Lens Colour | Clear |
| Lens Shape | Round |
| Luminous Intensity | 1560mcd |
| Mode | Flashing |
| MOQ | 10 |
| Mounting Style | Through Hole |
| Number of Pins | 2 |
| Operating Temperature | -30°C to +80°C |
| Package | 10mm |
| Packaging | Bulk |
| Viewing Angle | 30° |
| Wavelength | 625nm |
