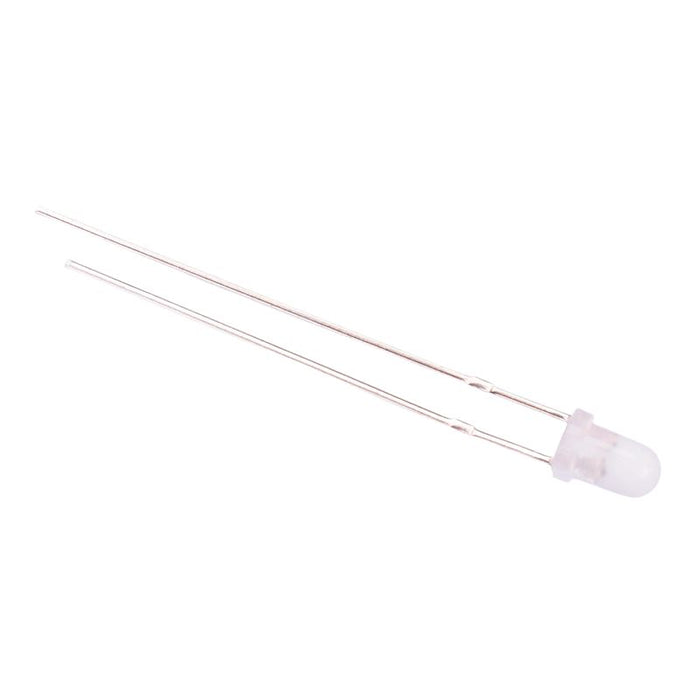

Red / Green Bi-Colour 3mm Diffused LED 60°

SKU 484901

MPN: 307VGM2E-1B

Availability:
1238 in stock
Original price £0.14 - Original price £0.14
Original price
£0.14 Inc VAT
£0.14 - £0.14
Current price £0.14 Inc VAT
Red / green 3mm bipolar LED featuring a white diffused package allowing each colour to be illuminated by reversing the polarity. The LED is suitable for applications including use as indicators, backlighting and illumination.

  • Luminous intensity: red 170mcd, green 45mcd
  • Wavelength: red 624nm, green 571nm
  • Viewing angle: 60°
  • Forward voltage: 2.0V
  • Forward current: 25mA
  • Suitable for through-hole mounting
  • 2.54mm lead pitch
  • White diffused lens
  • Excellent weather resistance
  • Long lifespan
  • Specification
    Back order lead time 40 Days
    Colour Red / Green
    Diameter 3mm
    Forward current 25mA
    Forward voltage 2.0V
    Lens colour White
    Lens shape Round
    Luminous intensity Red 170mcd, Green 45mcd
    Mode Constant
    Moq 5
    Mounting style Through Hole
    Number of pins 2
    Operating temperature -40°C to +80°C
    Package 3mm
    Packaging Bulk
    Power dissipation 60mW
    Viewing angle 60°
    Wavelength Red 624nm, Green 571nm
