Red / Green Bi-Colour 5mm White Diffused LED Common Anode
by Luckylight
SKU 484877
MPN: 509VPGM2E-A-3C-G52B
Availability:
1978 in stock
Original price
£0.19
-
Original price
£0.19
Original price
£0.19
£0.22
£0.22
-
£0.22
Current price
£0.22

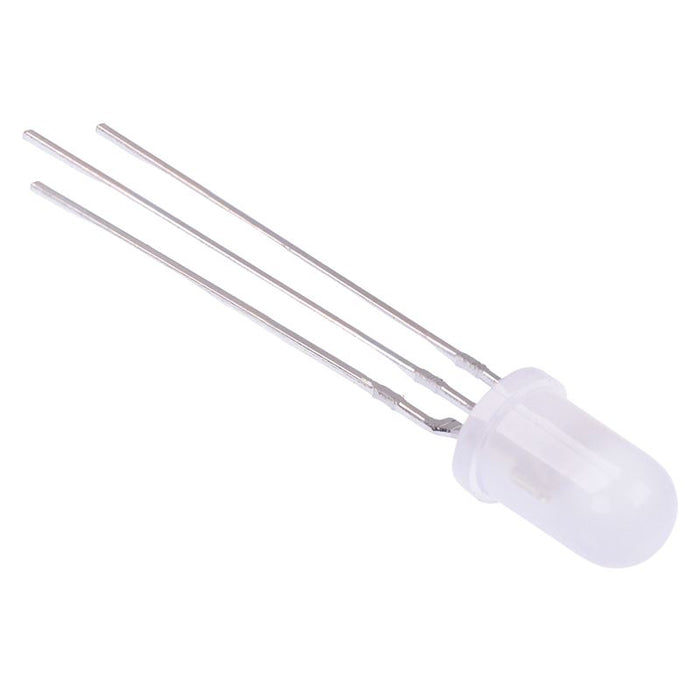

Red / green 5mm bi-colour LED featuring a white diffused package with 3 leads connected in common anode. The LED is suitable for applications including use as indicators, backlighting and illumination.
Luminous intensity: red 890mcd, green 3000mcd Wavelength: red 624nm, green 525nm Viewing angle: 60° Forward voltage: red 2.0V, green 3.0V Forward current: 25mA Suitable for through-hole mounting 2.54mm lead pitch White diffused lens Excellent weather resistance Long lifespan
Specification
| Back Order Lead Time | 40 Days |
| Colour | Red / Green |
| Diameter | 5mm |
| Forward Current | 25mA |
| Forward Voltage | Red 2.0V, Green 3.0V |
| Lens Colour | White |
| Lens Shape | Round |
| Luminous Intensity | Red 890mcd, Green 3000mcd |
| Mode | Constant |
| MOQ | 5 |
| Mounting Style | Through Hole |
| Number of Pins | 3 |
| Operating Temperature | -40°C to +80°C |
| Package | 5mm |
| Packaging | Bulk |
| Power Dissipation | Red 60mW, Green 85mW |
| Viewing Angle | 60° |
| Wavelength | Red 624nm, Green 525nm |
