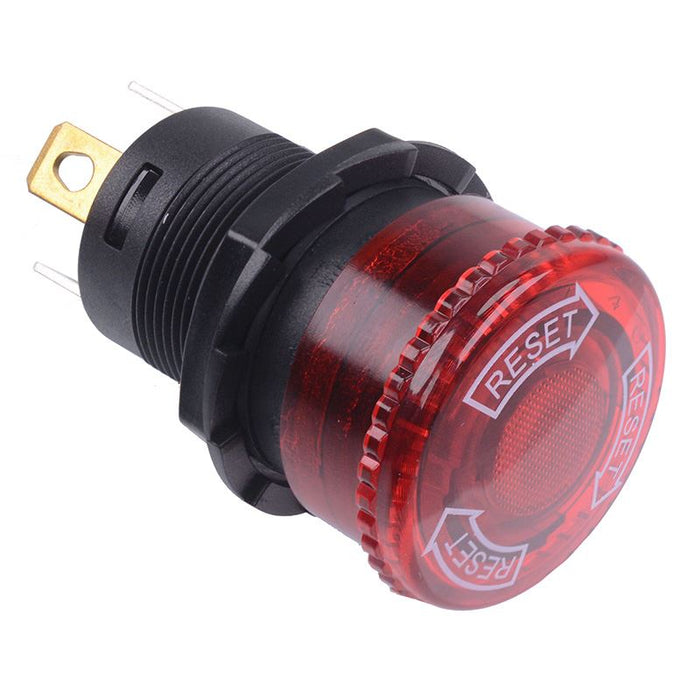

Red illuminated Emergency Stop Switch 12V R13-930LS-01-1
by SCI
SKU 483214
MPN: R13-930LS-01-1
Availability:
222 in stock
Original price
£4.54
-
Original price
£4.54
Original price
£4.54
£4.54
-
£4.54
Current price
£4.54
Red emergency stop switch featuring 12V red illumination and 30mm diameter actuator. The switch opens the contacts when pressed and is reset by twisting clockwise. The switch is suitable for use with industrial and commerical 12V machinery.
Push to break the circuit, twist to reset
12V illumination
6.3mm quick connect terminals
22mm panel cut-out diameter
1.5-5mm panel thickness
Dimensions: 51.5 x 30mm (Length x Diameter)
Specification
| Actuation | Twist Release |
| Back Order Lead Time | 120 Days |
| Colour | Red |
| Contact Configuration | 1NC |
| Contact Rating | 21A 14VDC |
| Current Rating | 21A |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 12VDC |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +85°C |
| Panel Cut Out | 22mm |
| Terminal Type | Quick Connect |
| Voltage Rating | 14VDC |
