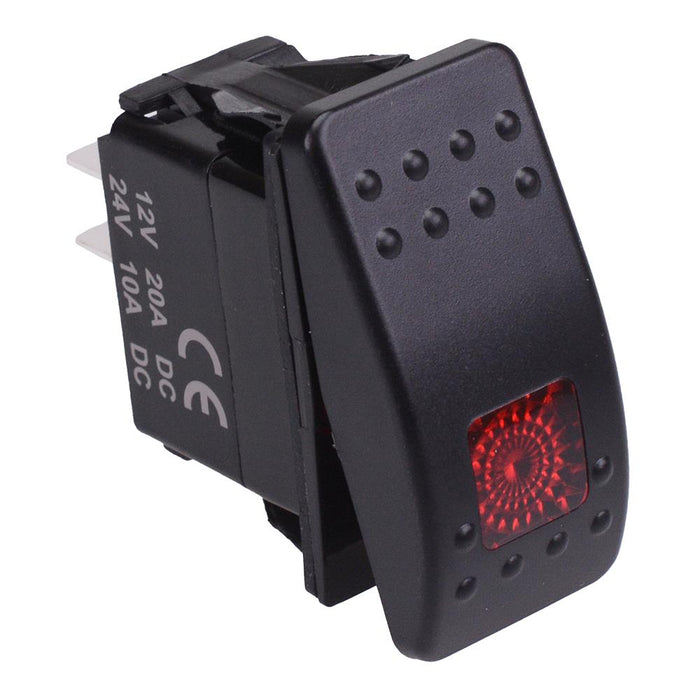

Red illuminated Off-(On) Momentary Automotive Rocker Switch DPST 10A 12-24V IP68
SKU 491898
MPN: CA211D1RL1-HA2R
Availability:
196 in stock
Original price
£4.14
-
Original price
£4.14
Original price
£4.14
£4.14
£4.14
-
£4.14
Current price
£4.14
Momentary Off-(On) function rocker switch featuring DPST contacts and red LED illumination. The switch features IP68 protection rating and fits standard automotive 37x21mm panel cut-outs. The switch is suitable for a wide range of 12V/24V applications including autmotive and marine.
Function: momentary Off-(On) Contacts: DPST Red LED illumination illumination voltage: 12V/24V Protection rating: IP68 Panel cut-out: 37x21mm Panel thickness: 1-4.9mm Rating: 10A 24VDC, 20A 12VDC, 10A 250VAC, 15A 125VAC Dimensions: 51.8 x 49.5 x 24.5mm (height x length x width)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 120 Days |
| Colour | Red |
| Contact Configuration | DPST |
| Contact Material | Silver Plated Brass |
| Contact Rating | 10A 24VDC, 20A 12VDC |
| Current Rating | 20A |
| Electrical Life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 12/24VDC |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 37 x 21mm |
| Panel Thickness | 1-4.9mm |
| Protection Level | IP68 |
| Switch Operation | Off-(On) |
| Terminal Type | Quick Connect |
| Voltage Rating | 24VDC / 250VAC |
