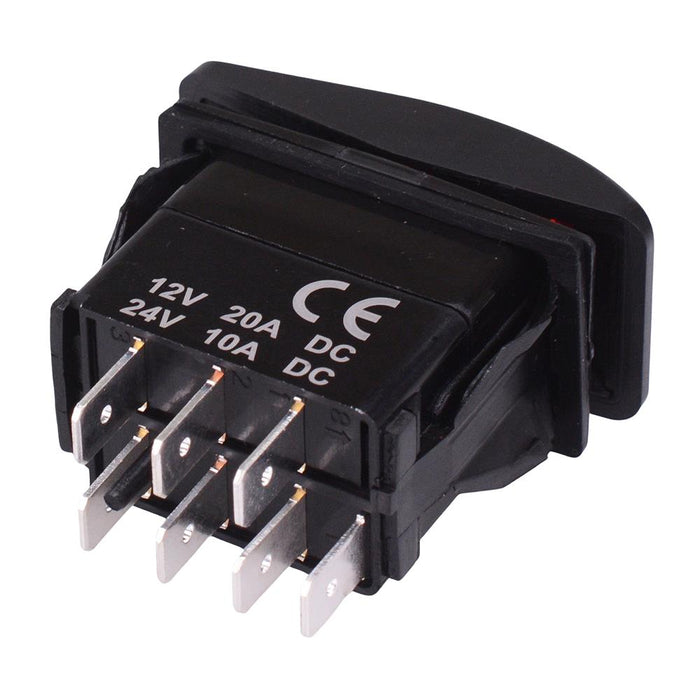

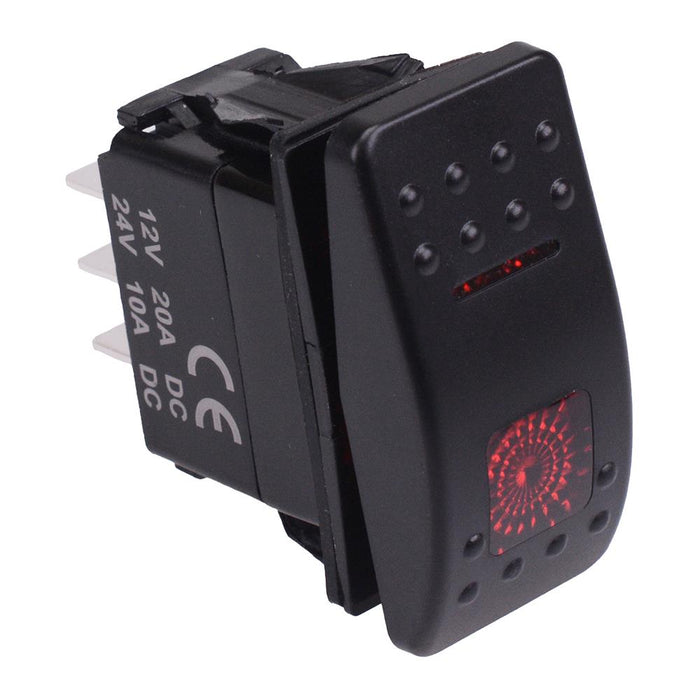

Red illuminated (On)-Off-(On) Momentary Automotive Rocker Switch DPDT 10A 12-24V
SKU 491902
MPN: CA223D2RL1-HA4R
Availability:
200 in stock
Original price
£4.26
-
Original price
£4.26
Original price
£4.26
£4.26
£4.26
-
£4.26
Current price
£4.26
Momentary (On)-Off-(On) function rocker switch featuring DPDT contacts and red LED illumination. The switch features IP68 protection rating and fits standard automotive 37x21mm panel cut-outs. The switch is suitable for a wide range of 12V/24V applications including autmotive and marine.
Function: momentary (On)-Off-(On) Contacts: DPDT Red LED illumination in both 'On' positions illumination voltage: 12V/24V Protection rating: IP68 Panel cut-out: 37x21mm Panel thickness: 1-4.9mm Rating: 10A 24VDC, 20A 12VDC, 10A 250VAC, 15A 125VAC Dimensions: 51.8 x 49.5 x 24.5mm (height x length x width)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 120 Days |
| Colour | Red |
| Contact Configuration | DPDT |
| Contact Material | Silver Plated Brass |
| Contact Rating | 10A 24VDC, 20A 12VDC |
| Current Rating | 20A |
| Electrical Life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 12/24VDC |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 3 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 37 x 21mm |
| Panel Thickness | 1-4.9mm |
| Protection Level | IP68 |
| Switch Operation | (On)-Off-(On) |
| Terminal Type | Quick Connect |
| Voltage Rating | 24VDC / 250VAC |
