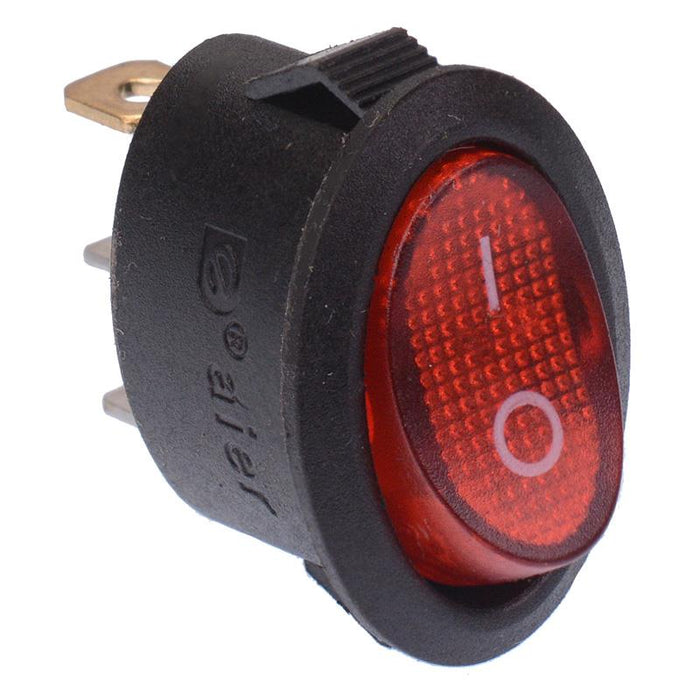

Red illuminated On-Off Oval Rocker Switch SPST 230V
SKU 485632
MPN: 485632
Availability:
78 in stock
Original price
£0.91
-
Original price
£0.91
Original price
£0.91
£0.91
£0.91
-
£0.91
Current price
£0.91
Red illuminated On-Off oval rocker switch featuring SPST contacts and 4.8mm quick connect terminals. The switch is designed for industrial and consumer applications requiring an oval shape panel mount switch.
Rating: 6A 250VAC, 10A 125VAC On-off action SPST contacts 230V illumination Panel cut-out: 21.8 x 13.8mm 4.8mm quick connect terminals
Specification
| Actuation | Latching |
| Back Order Lead Time | 40 Days |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Rating | 6A 250VAC |
| Current Rating | 6A |
| Electrical Life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 230VAC |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 13.8 x 23mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
