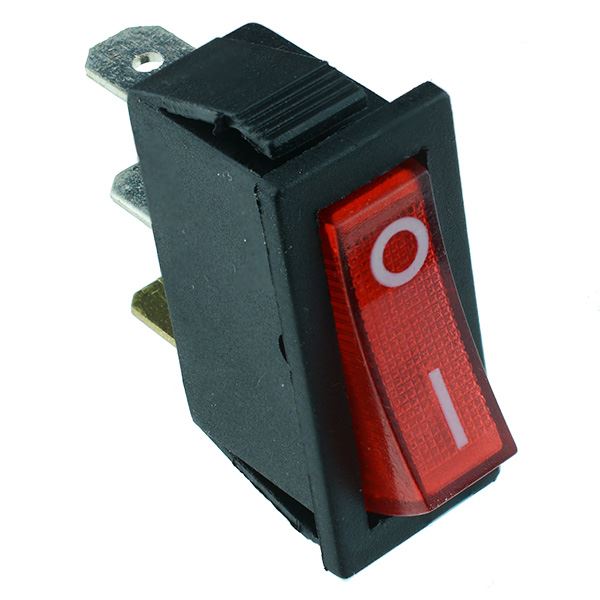

Red illuminated Rectangle Rocker Switch 230V SPST
SKU 480902
MPN: 480902
Availability:
Out of stock
Sold out
Original price
£1.09
-
Original price
£1.09
Original price
£1.09
£1.09
£1.09
-
£1.09
Current price
£1.09
Red illuminated 230V rectangle rocker switch with SPST contacts and On-Off action suitable for snap-in mounting. The switch features a compact housing with a high rating making it suitable for a wide range of commerical and domestic applications.
SPST contacts On-Off action Red illumination 4.8mm quick connect terminals Snap-in mounting Panel cut-out: 27.5 x 12.5mm Maximum voltage: 250VAC Maximum current: 15A Dimensions: 27 x 16 x 32.5mm (Height x Width x Length)
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Rating | 15A 250VAC |
| Current Rating | 15A |
| Electrical Life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 230VAC |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 27.5mm x 12.5mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
