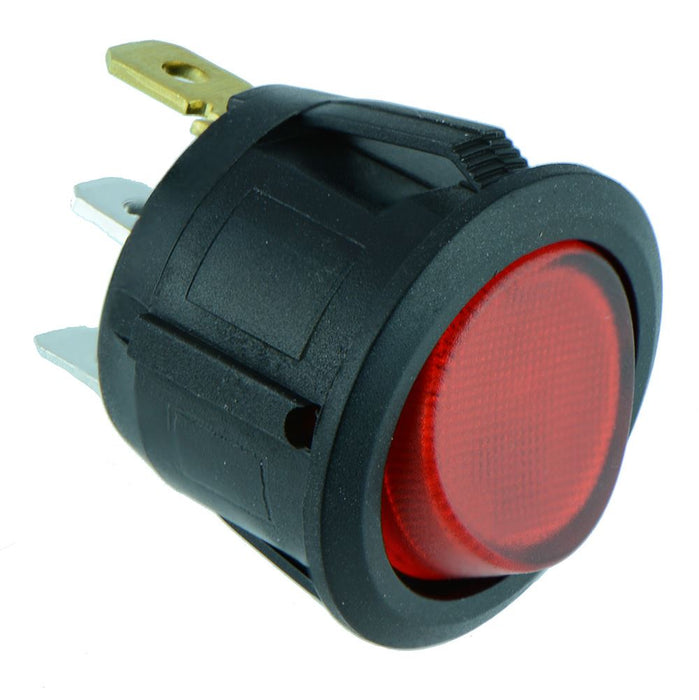

Red illuminated Round Rocker Switch SPST 12V 20A R13-112B-02
by SCI
SKU 551694
MPN: R13-112B-02 Red 12V
Availability:
407 in stock
Original price
£1.47
-
Original price
£1.47
Original price
£1.47
£1.54
£1.54
-
£1.54
Current price
£1.54
The R13-112B2 is an On-Off rocker switch in a 20mm circular package with red 12V LED illumination. The switch features SPST contacts and quick connect terminals. Suitable for automotive, marine and other 12V applications.
On-Off operation Contacts: SPST Panel cut-out: 20.2mm Rating: 20A 14VDC illumination voltage: 12VDC Terminals: 4.8mm quick connect Dimensions: 28.6 x 23mm (height x diameter)
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 Days |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Rating | 20A 14VDC |
| Current Rating | 20A |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 12VDC |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 20.2mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 14VDC |
