Red LED 16mm Latching Vandal Resistant Switch 3A SPDT
by Langir
SKU 550466
MPN: L16FZ1SRR12V
Availability:
21 in stock
Original price
£6.86
-
Original price
£6.86
Original price
£6.86
Inc VAT
£6.86
-
£6.86
Current price
£6.86
Inc VAT

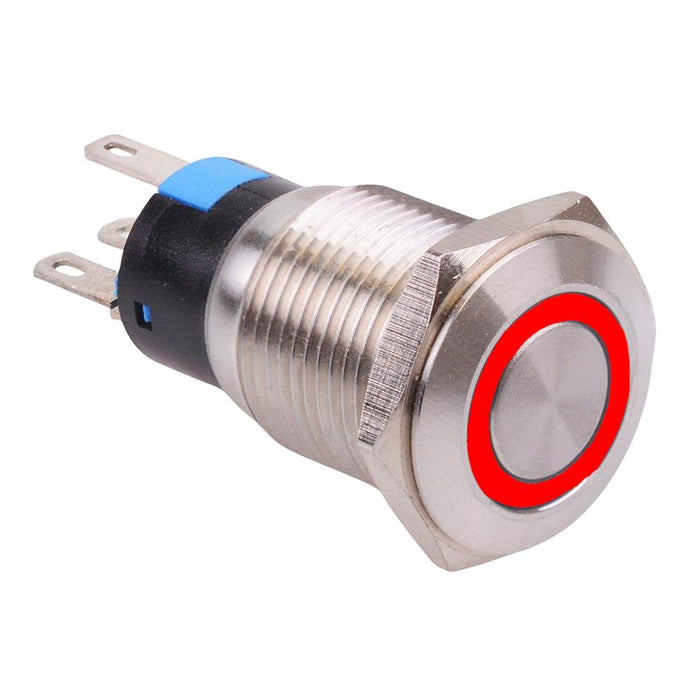

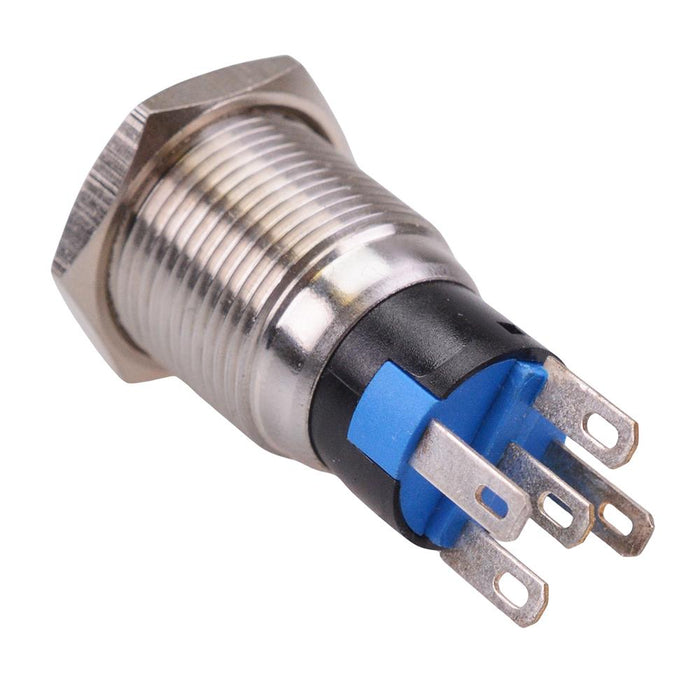

Vandal resistant switch with a stainless steel construction LED ring illumination. Featuring a flush operating button, suitable for applications where an attractive tamper proof switch is required.
Latching action SPDT NO/NC contact configuration Red LED 12V illumination Stainless steel construction 16mm panel cut-out 3A 250VAC rating
Specification
| Actuation | Latching |
| Back order lead time | 45 Days |
| Colour | Red |
| Contact configuration | SPDT |
| Contact rating | 3A 250VAC |
| Current rating | 3A |
| Electrical life | 50,000+ Cycles |
| Illuminated | Yes |
| Illumination colour | Red |
| Illumination voltage | 12VDC |
| Material | Stainless Steel |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -20°C to +55°C |
| Panel cut out | 16mm |
| Protection level | IP65 |
| Switch operation | On-On |
| Terminal type | Solder |
| Voltage rating | 250VAC |
