Red LED 16mm Momentary Vandal Push Button Switch 3A SPDT
by Langir
SKU 550460
MPN: L16FM1SRR12V
Availability:
54 in stock
Original price
£5.72
-
Original price
£5.72
Original price
£5.72
£5.72
-
£5.72
Current price
£5.72

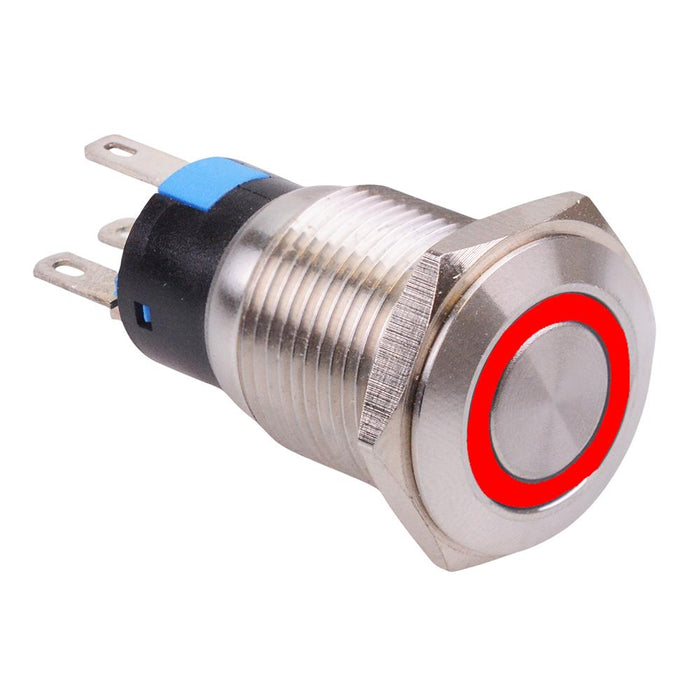

Red LED momentary vandal resistant switch featuring a stainless steel, suitable for a 16mm panel cut-out. The switch features a flush actuator and is suitable for 12V applications where an attractive tamper proof switch is required.

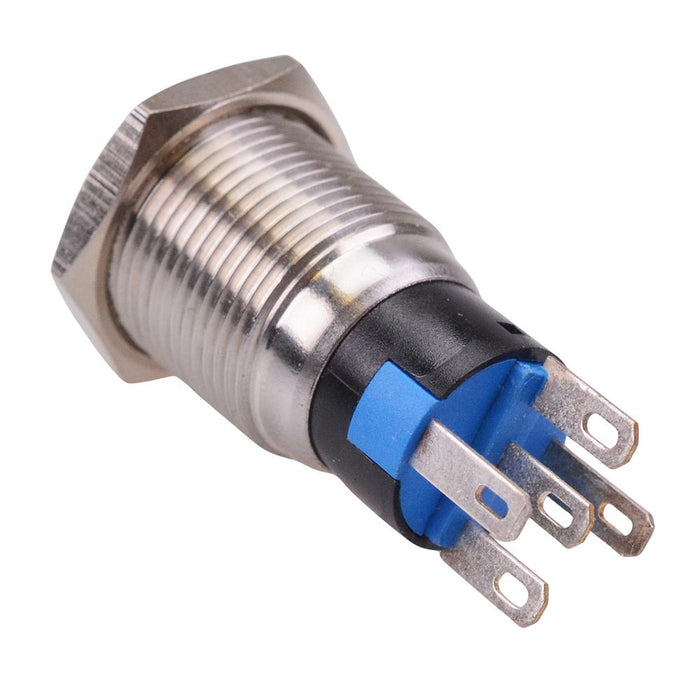

Momentary action SPDT NO/NC contacts Red LED 12V illumination Stainless steel construction Panel cut-out: 16mm Panel thickness: 10mm max Rating: 3A 250VAC 2.8x0.8mm terminals
Specification
Actuation | Momentary |
Back Order Lead Time | 45 Days |
Colour | Red |
Contact Configuration | SPDT |
Contact Rating | 3A 250VAC |
Current Rating | 3A |
Electrical Life | 50,000+ Cycles |
Illuminated | Yes |
Illumination Colour | Red |
Illumination Voltage | 12VDC |
Material | Stainless Steel |
Mounting Style | Panel |
Number of Positions | 2 |
Operating Temperature | -20°C to +55°C |
Panel Cut Out | 16mm |
Protection Level | IP65 |
Switch Operation | On-(On) |
Terminal Type | Solder |
Voltage Rating | 250VAC |
