Red LED 19mm Latching Vandal Resistant Push Button Switch SPDT 21A 12V
by Langir
SKU 482236
MPN: L19BFZ321SRR12V
Availability:
20 in stock
Original price
£10.82
-
Original price
£10.82
Original price
£10.82
£10.82
£10.82
-
£10.82
Current price
£10.82

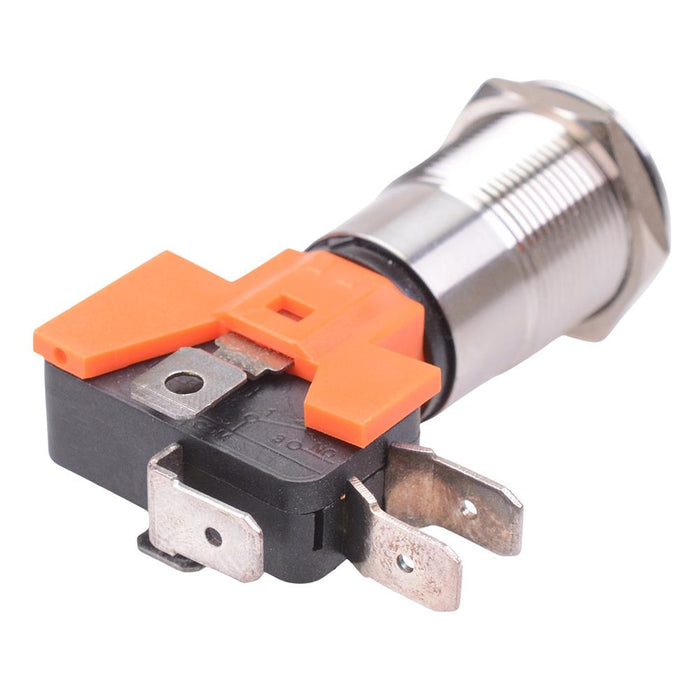

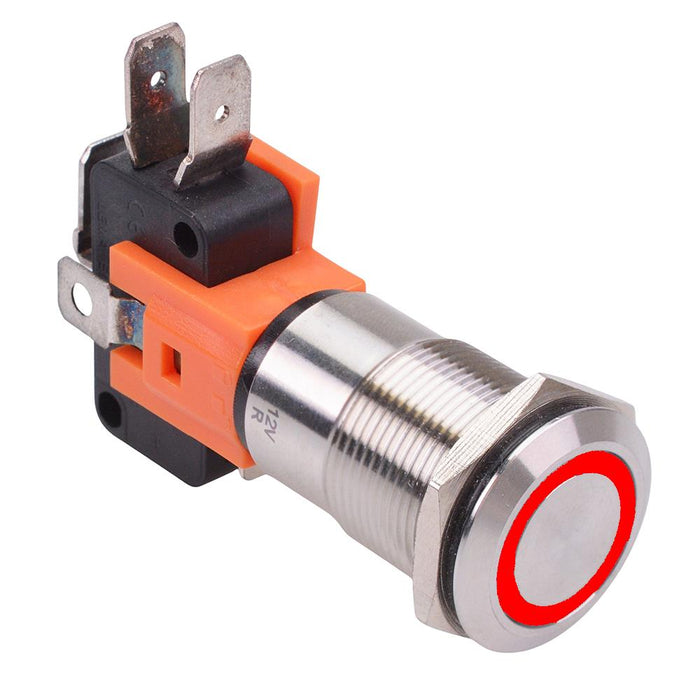

Latching 19mm vandal resistant push button switch featuring a 21A current rating and red 12V LED. The switch features SPDT contacts and a removable microswitch making it suitable for high current 12V applications including automotive.
Latching On-On action NO/NC contacts Red LED 12V illumination voltage IP65 protection rating 19mm panel cut-out diameter Stainless steel body Removable microswitch 6.35mm quick connect terminals Rating: 21A 250VAC
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 |
| Colour | Red |
| Contact Configuration | SPDT |
| Contact Rating | 21A 250VAC |
| Current Rating | 21A |
| Electrical Life | 50,000+ Cycles |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 12VDC |
| Material | Stainless Steel |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 19mm |
| Protection Level | IP65 |
| Switch Operation | On-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
