Red LED 24V On-On Latching 19mm Vandal Push Button Switch SPDT
SKU 484990
MPN: 484990
Availability:
30 in stock
Original price
£6.86
-
Original price
£6.86
Original price
£6.86
£6.86
-
£6.86
Current price
£6.86

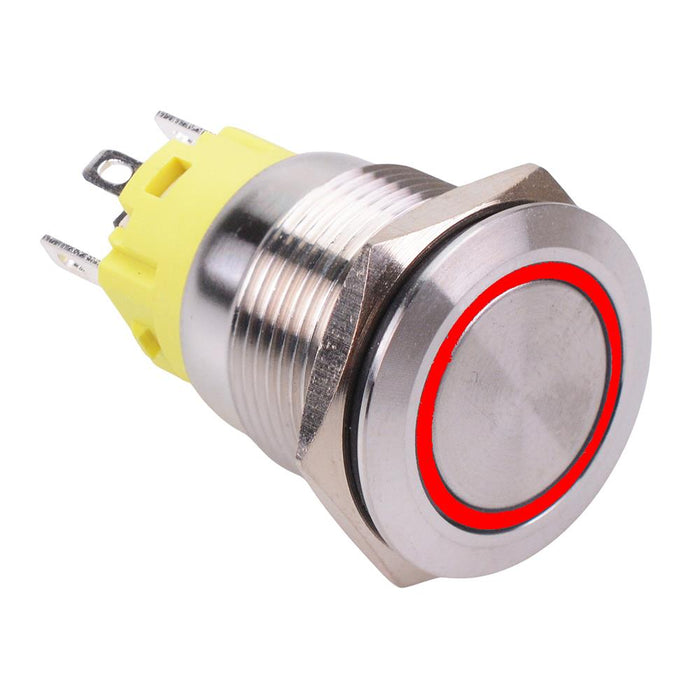

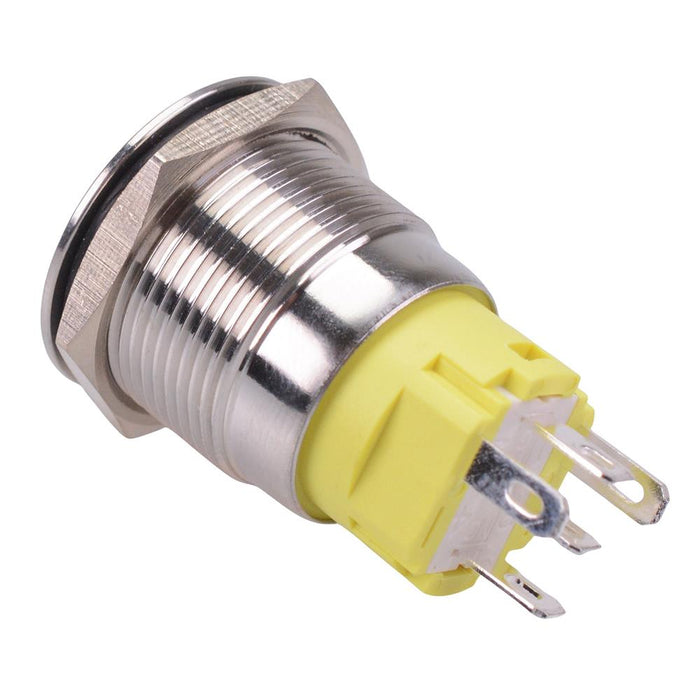

Latching vandal resistant 19mm push button switch featuring a red 24V LED and SPDT contacts. The switch is manufactured from stainless steel and features IP65 protection rating, making it suitable for a wide range of automotive and other 24V applications.
Latching action Red LED 24V illumination voltage IP65 protection rating 19mm panel cut-out diameter NO/NC contacts 2.8mm terminals Rating: 5A 250VAC Dimensions: 35.1 x 22mm (length x diameter)
Specification
Actuation | Latching |
Back Order Lead Time | 30 Days |
Colour | Red |
Contact Configuration | SPDT |
Contact Rating | 5A 250VAC |
Current Rating | 5A |
Electrical Life | 50,000 Cycles |
Illuminated | Yes |
Illumination Colour | Red |
Illumination Voltage | 24VDC |
Material | Stainless Steel |
Mounting Style | Panel |
Number of Positions | 2 |
Operating Temperature | -25°C to +85°C |
Panel Cut Out | 19mm |
Protection Level | IP65 |
Switch Operation | On-On |
Terminal Type | Quick Connect |
Voltage Rating | 250VAC |
