Red LED 3V On-(On) Momentary 16mm Vandal Push Switch SPDT
SKU 484992
MPN: 484992
Availability:
6 in stock
Original price
£6.10
-
Original price
£6.10
Original price
£6.10
Inc VAT
£6.10
-
£6.10
Current price
£6.10
Inc VAT

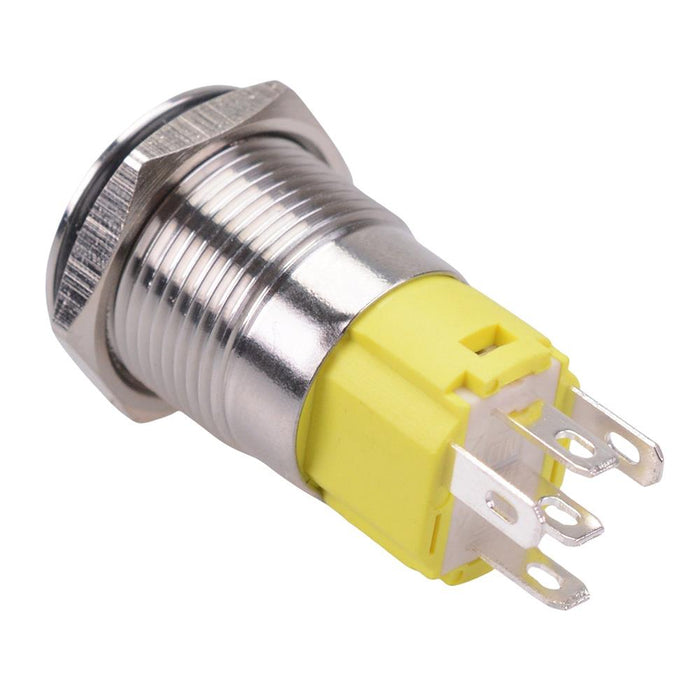

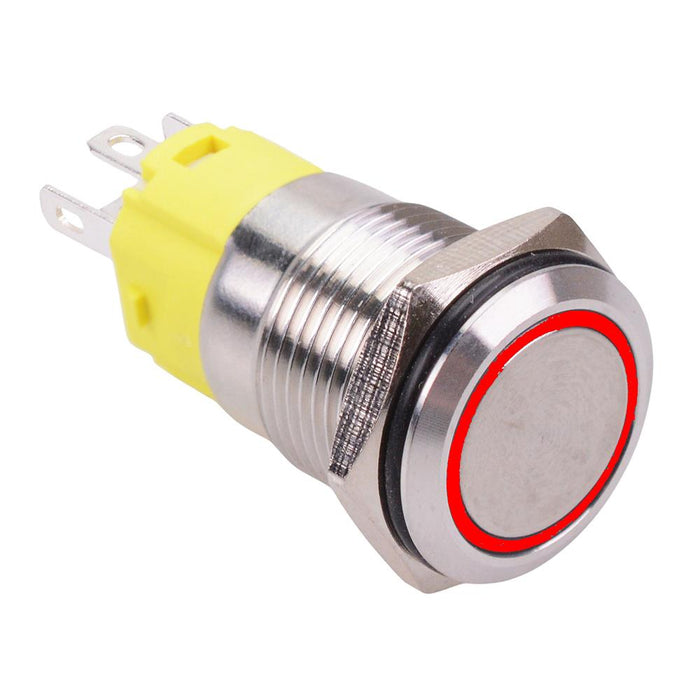

Red LED momentary vandal resistant push button switch manufactured from stainless steel, featuring NO/NC contacts. The switch features IP65 protection rating and is suitable for 3V applications including use as a computer power switch.
Momentary On-(On) action Red LED 3V illumination voltage IP65 protection rating 16mm panel cut-out diameter NO/NC contacts 2.8mm terminals Rating: 3A 250VAC
Specification
| Actuation | Momentary |
| Back order lead time | 30 Days |
| Colour | Red |
| Contact configuration | SPDT |
| Contact rating | 3A 250VAC |
| Current rating | 3A |
| Electrical life | 50,000 Cycles |
| Illuminated | Yes |
| Illumination colour | Red |
| Illumination voltage | 3VDC |
| Material | Stainless Steel |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 16mm |
| Protection level | IP65 |
| Switch operation | On-(On) |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
