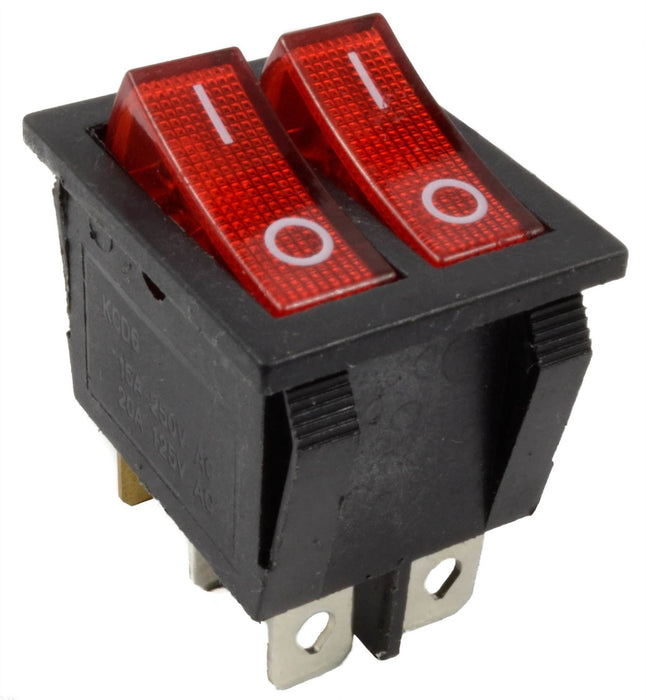

Red LED Dual On-Off Rectangle Rocker Switch 230V
SKU 131007
MPN: 131007
Availability:
40 in stock
Original price
£1.45
-
Original price
£1.45
Original price
£1.45
£1.45
£1.45
-
£1.45
Current price
£1.45
Dual rectangle rocker switch with SPST contacts suitable for applications where 2 circuits need to be switched independently.
On-off action SPST contacts 6.3mm quick connect terminals 28.5 x 22mm panel cut-out Maximum current: 15A Maximum voltage: 250VAC Dimensions: 38.5 x 31 x 24mm (Height x Length x Width)
Specification
| Actuation | Latching |
| Back Order Lead Time | 40 Days |
| Colour | Red |
| Contact Configuration | DPST |
| Contact Rating | 15A 250VAC |
| Current Rating | 15A |
| Electrical Life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 230VAC |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 28.5 x 22mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
