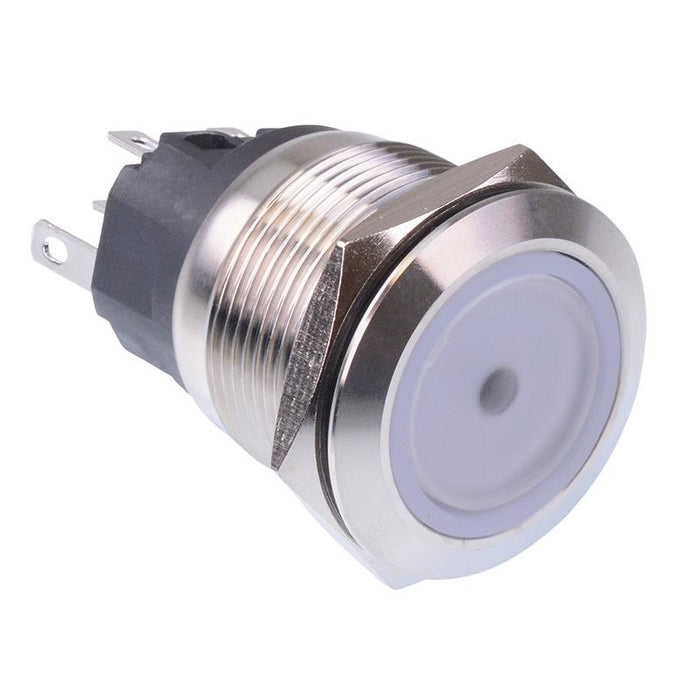

Red LED Momentary 22mm Vandal Push Button Switch DPDT 12V
by Langir
SKU 486516
MPN: L22TFM2SR2R12V
Availability:
20 in stock
Original price
£17.23
-
Original price
£17.23
Original price
£17.23
£17.23
£17.23
-
£17.23
Current price
£17.23
Momentary vandal resistant push button switch featuring a red LED requiring 12V supply voltage and 22mm panel cut-out diameter. The switch housing is stainless steel giving it a long lifespan and resistance against rust. The switch features IP65 protection rating and is suitable for a range of 12V applications including automotive and marine.
Suitable for use with adhesive labels Momentary action Red 12V LED Panel cut-out: 22mm Panel thickness: 1-8mm Current rating: 3A Protection level: IP65 Contacts: 2NO/2NC Material: stainless steel Terminals: 2.8 x 0.5mm Dimensions: 35.5 x 25mm (height x diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 45 Days |
| Contact Configuration | SPDT |
| Contact Rating | 3A 250VAC |
| Current Rating | 3A |
| Electrical Life | 30,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 12VDC |
| Material | Stainless Steel |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Force | 3-5N |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 19mm |
| Panel Thickness | 1-8mm |
| Protection Level | IP65 |
| Switch Operation | On-(On) |
