Red LED On-Off Toggle Switch SPST 12V 20A
SKU 550105
MPN: 550105
Availability:
295 in stock
Original price
£1.68
-
Original price
£1.68
Original price
£1.68
£1.68
£1.68
-
£1.68
Current price
£1.68

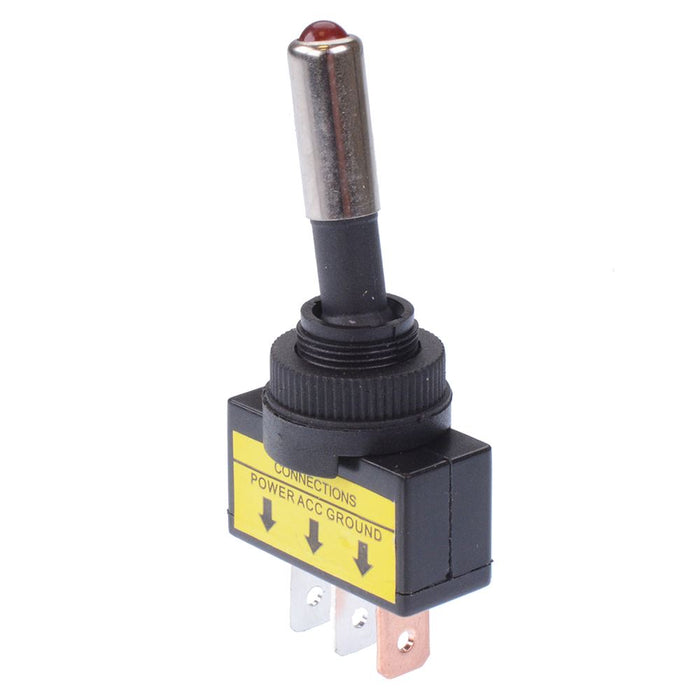

SPST toggle switch and Red LED indicator which illuminates when the switch is in the 'On' position. The switch is suitable for a wide variety of appliances, panel mounting and is commonly used for automotive applications.
On-Off Toggle Switch SPST Contacts 20A 12VDC 12mm Panel Cut Out Dimensions: 61 x 12 x 26.2mm (Height x Width x Length) Red LED Indicator LED requires 12VDC illumination 6.3mm Quick Connect Terminals
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Rating | 20A 12VDC |
| Current Rating | 20A |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 12VDC |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 12mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 12VDC |
