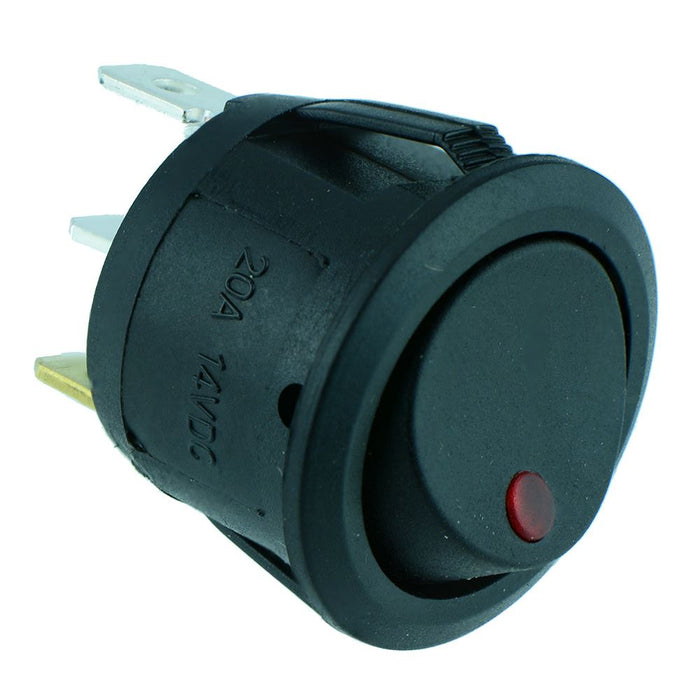

Red LED Round Rocker Switch SPST 12V 20A R13-112B2-02
by SCI
SKU 551697
MPN: R13-112B2-02 Red 12V
Availability:
447 in stock
Original price
£1.69
-
Original price
£1.69
Original price
£1.69
£1.69
£1.69
-
£1.69
Current price
£1.69
Circular rocker switch featuring SPST contacts and red illumination suitable for a wide range of applications including automotive.
SPST contacts On-Off operation Red LED illumination 20.2mm panel cut-out Snap-in mounting 4.8mm quick connect terminals Rating: 20A 14VDC R13-112 series
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Rating | 20A 14VDC |
| Current Rating | 20A |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 12VDC |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 20.2mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 14VDC |
