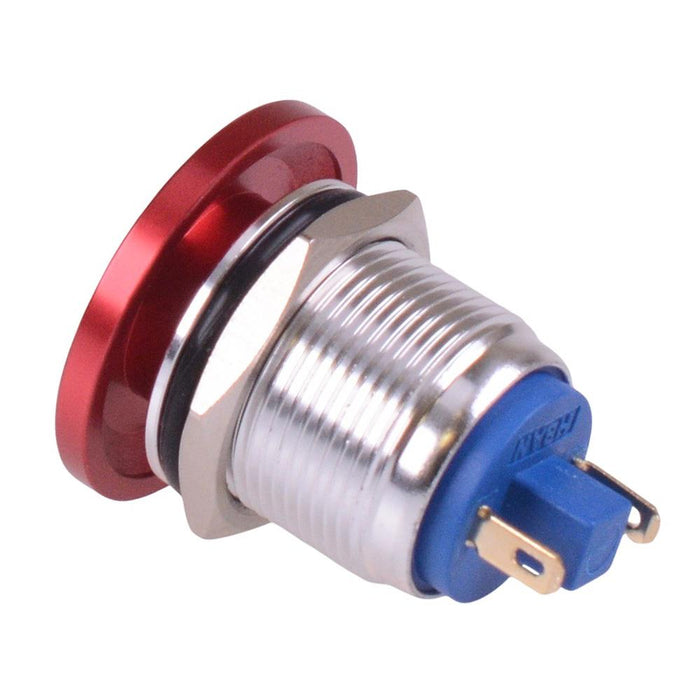

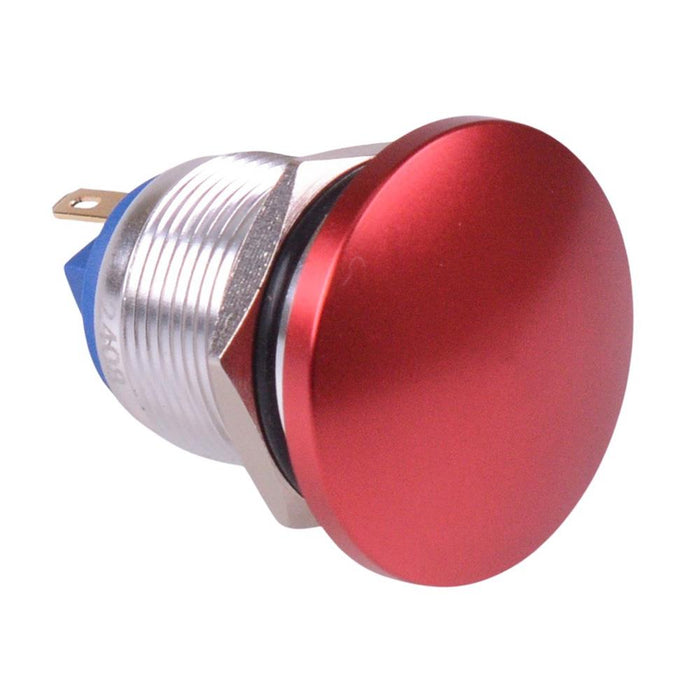

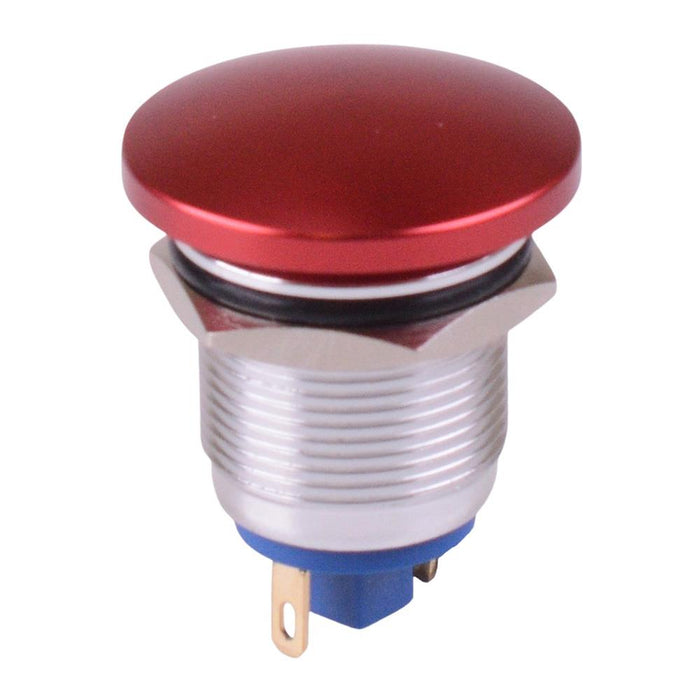

Red Mushroom Momentary 19mm Metal Push Button Switch IP65 NO

SKU 490321

MPN: HBGQ19M-10/J/T/R

Availability:
40 in stock
Original price £6.33 - Original price £6.33
Original price
£6.33
£6.33 - £6.33
Current price £6.33
Red 19mm momentary vandal resistant push button switch featuring normally open SPST contacts. The switch features a red mushroom button and is constructed from an aluminium alloy. The switch features an IP65 protection rating and is suitable for a wide range of applications including security, control panels, industrial, automotive etc.

  • Off-(On) operation
  • SPST-NO contacts
  • Red mushroom button
  • Panel cut-out: 19mm
  • Panel thickness: 9mm max
  • 2.8x0.5mm quick connect / solder terminals
  • Rating: 5A 250V
  • Protection rating: IP65
  • Head diameter: 27.7mm
  • Dimensions: 35.7 x 27.7mm (height x diameter)
  • Specification
    Actuation Momentary
    Back Order Lead Time 45 Days
    Colour Red
    Contact Configuration SPST
    Contact Material Silver Alloy
    Contact Rating 5A 250VAC
    Current Rating 5A
    Electrical Life 50,000 Cycles
    Illuminated No
    Material Aluminium Alloy
    MOQ 1
    Mounting Style Panel
    Number of Poles 1
    Number of Positions 2
    Operating Temperature -25°C to +65°C
    Panel Cut Out 19mm
    Panel Thickness 9mm Max
    Protection Level IP65
    Switch Operation Off-(On)
    Terminal Type Quick Connect
    Voltage Rating 250VAC
