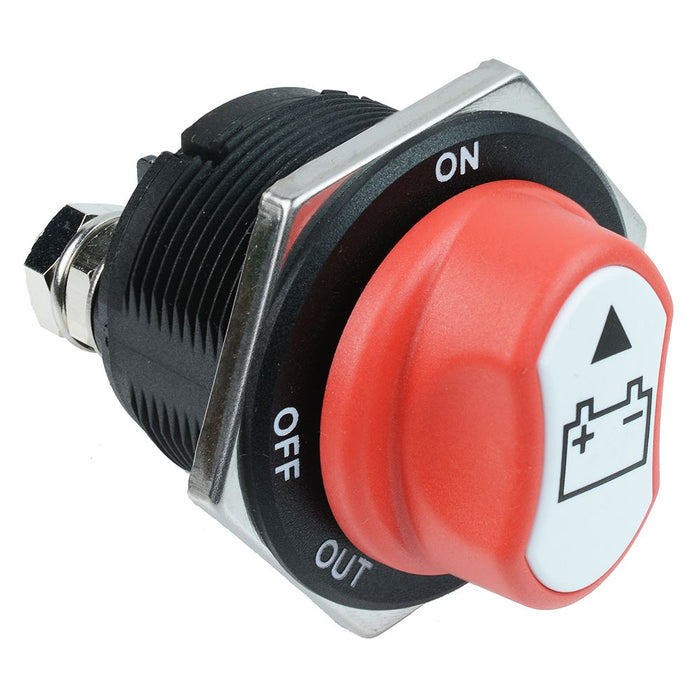

Red Off-On Battery Switch SPST 200A 32V DC SCI A23-8B
by SCI
SKU 550003
MPN: A23-8B
Availability:
182 in stock
Original price
£9.41
-
Original price
£9.41
Original price
£9.41
£9.41
£9.41
-
£9.41
Current price
£9.41
Battery switch featuring an On-Off operation and removable actuator suitable for a wide range of applications.
Rating: 200A 50VDC Removable actuator Black Housing with Red Actuator and Battery Symbol Screw terminals 38.1mm panel cut-out
Specification
| Back Order Lead Time | 150 |
| Colour | Red |
| Contact Configuration | SPST |
| Continuous Rating | 200A 50VDC |
| Current Rating | 200A |
| MOQ | 1 |
| Mounting Style | Panel Mount |
| Number of Positions | 2 |
| Operating Temperature | -30°C to +60°C |
| Panel Cut Out | 38.1mm |
| Protection Level | IP40 |
| Switch Operation | Off-On |
| Terminal Type | M8 Studs |
| Voltage Rating | 50VDC |
