Red Off-(On) Automotive Illuminated Engine Starter Push Switch SPST 50A 12V SCI A2-23B
by SCI
SKU 550001
MPN: A2-23B Red
Availability:
148 in stock
Original price
£6.42
-
Original price
£6.42
Original price
£6.42
£6.42
-
£6.42
Current price
£6.42

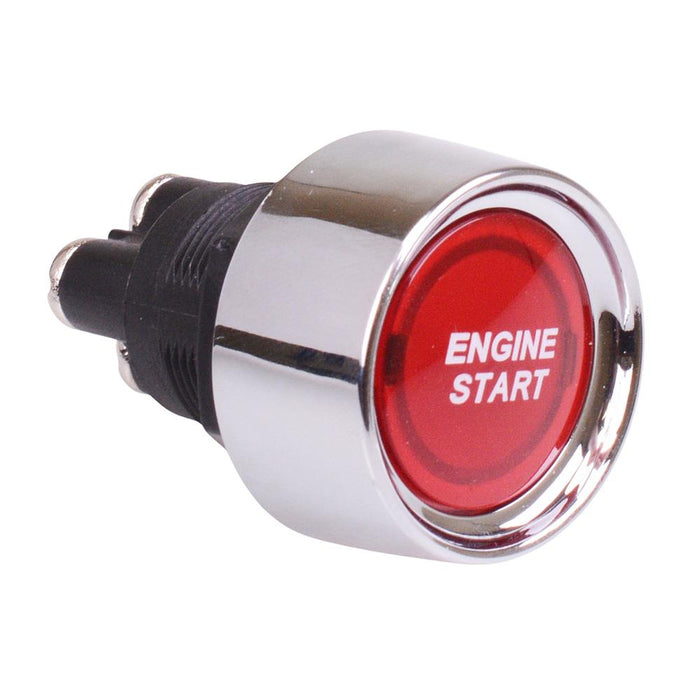

Red Engine Starter Button Switch with Off-(On) Momentary Operation. Suitable for a wide range of applications.

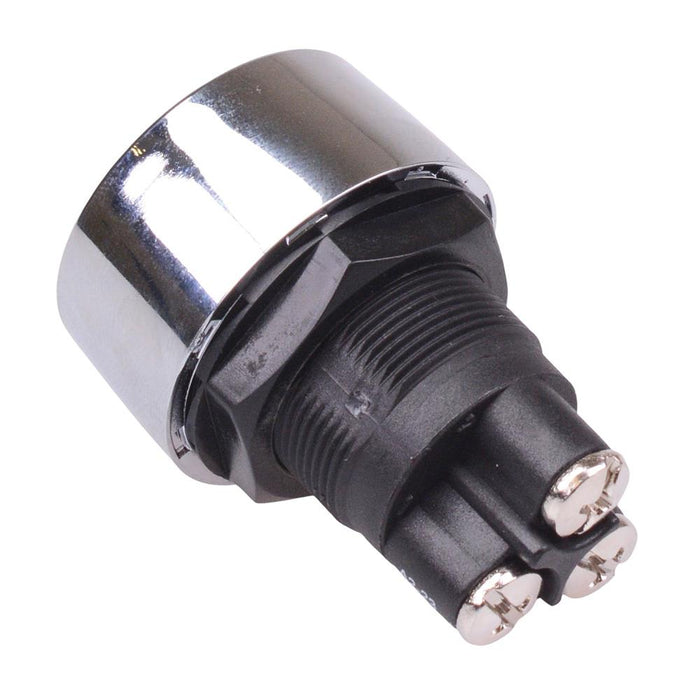

Rating: 50A 12V Momentary Function Chrome Silver Housing with Red Illuminated Button and 'Engine Start' Printed 3P SPST
Specification
| Actuation | Momentary |
| Back Order Lead Time | 120 Days |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Rating | 50A 12VDC |
| Current Rating | 50A |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 12VDC |
| Material | Chrome |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 22mm |
| Switch Operation | Off-(On) |
| Terminal Type | Screw |
| Voltage Rating | 12VDC |
