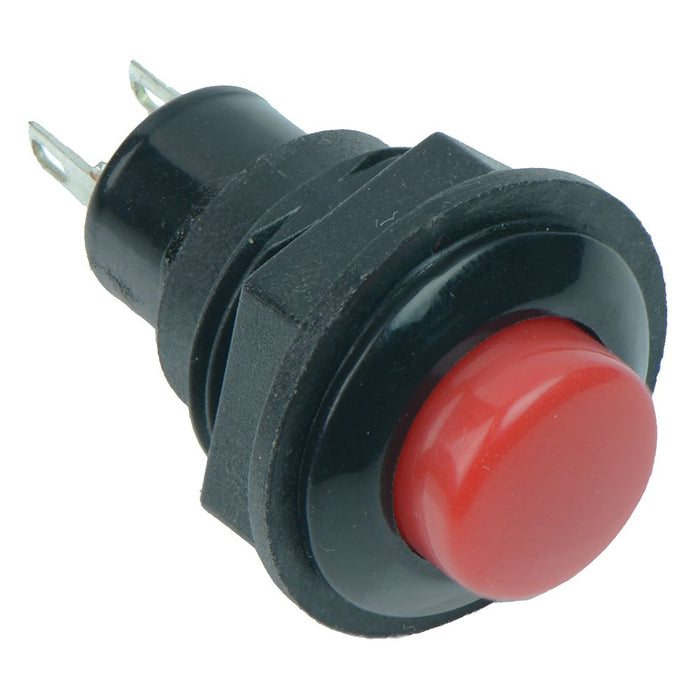

Red Off-(On) Low Profile Round 12mm Momentary Push Button Switch 1.5A SPST

by Canal
SKU 550397

MPN: PB-01-PP-R

Availability:
548 in stock
Original price £0.83 - Original price £0.83
Original price
£0.83 Inc VAT
£0.83 - £0.83
Current price £0.83 Inc VAT
Round push button switch with a Off-(On) action making it suitable for a range of uses.

  • Colour: Red Button
  • Rating: 3A 125VAC, 1.5A 250VAC
  • Off-(On) momentary operation
  • Red Plastic Housing
  • 12.7mm Panel Cut Out
  • 8.6mm Button Diameter
  • Maximum panel thickness: 3mm
  • Solder Lug Terminals
  • SPST contacts
  • Specification
    Actuation Momentary
    Back order lead time 45 Days
    Colour Red
    Contact configuration SPST
    Contact rating 3A 125VAC, 1.5A 250VAC
    Current rating 3A @ 125VAC
    Electrical life 10000 Cycles Min
    Illuminated No
    Illumination colour Non Illuminated
    Material PA66
    Mounting style Panel
    Number of positions 2
    Operating force 150gf
    Operating temperature 0°C to +85°C
    Panel cut out 12.7mm
    Switch operation Off-(On)
    Terminal type Solder
    Voltage rating 250VAC
