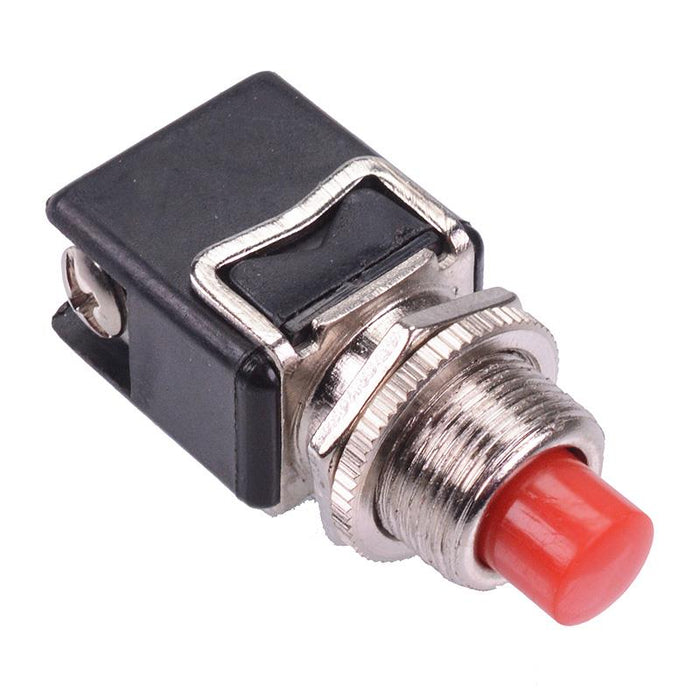

Red Off-(On) Momentary 12mm Push Button Switch SPST 4A
SKU 482783
MPN: 482783
Availability:
Out of stock
Sold out
Original price
£1.49
-
Original price
£1.49
Original price
£1.49
£1.49
£1.49
-
£1.49
Current price
£1.49
Red momentary Off-(On) push to make switch featuring SPST contacts and screw terminals. The switch features a compact design and 4A rating making them suitable for a wide range of applications.
Off-(On) action SPST contacts Screw terminals 7.7mm diameter button Panel cut-out: 12mm Dimensions: 39.5 x 17mm (Height x Width)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 45 |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Rating | 8A 125VAC, 4A 250VAC |
| Current Rating | 8A @ 125VAC |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 12mm |
| Switch Operation | Off-(On) |
| Terminal Type | Screw |
| Voltage Rating | 250VAC |
