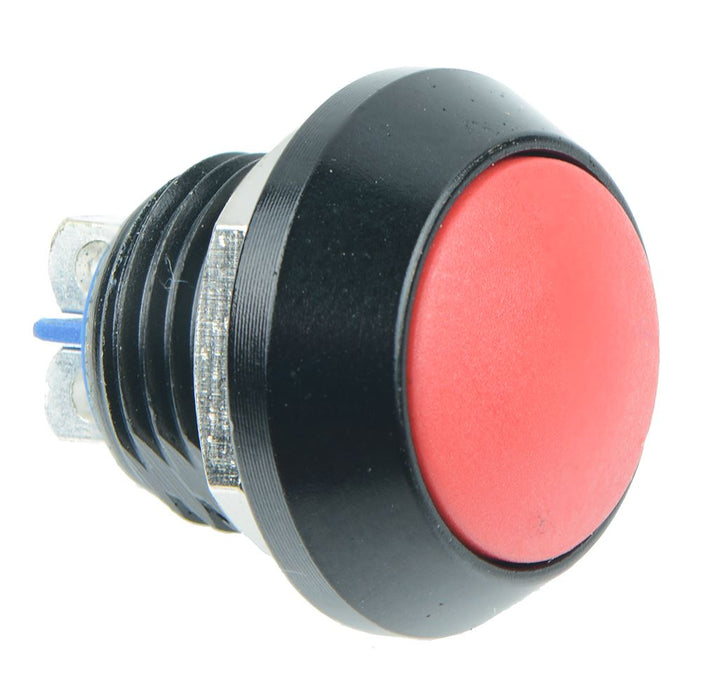

Red Off-(On) Momentary Push Button Switch Screw Terminals SPST IP65
SKU 101031
MPN: 101031
Availability:
Out of stock
Sold out
Original price
£3.90
-
Original price
£3.90
Original price
£3.90
Inc VAT
£3.90
-
£3.90
Current price
£3.90
Inc VAT
Momentary push button switch with a Off-(On) operation, featuring a compact size and screw terminals. Suitable for low current applications, the switch provides a reliable solution.
Red actuator Screw terminals Off-(On) momentary operation SPST-NO configuration 12mm panel cut-out IP65 protection Maximum current rating: 2A Maximum voltage rating: 36VDC
Specification
| Actuation | Momentary |
| Back order lead time | 40 Days |
| Colour | Red |
| Contact configuration | SPST |
| Contact rating | 2A 36VDC |
| Current rating | 2A |
| Electrical life | 50,000 Cycles |
| Illuminated | Yes |
| Illumination colour | Red |
| Illumination voltage | 12VDC |
| Material | Aluminium |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 12mm |
| Protection level | IP65 |
| Switch operation | Off-(On) |
| Terminal type | Screw |
| Voltage rating | 36VDC |
