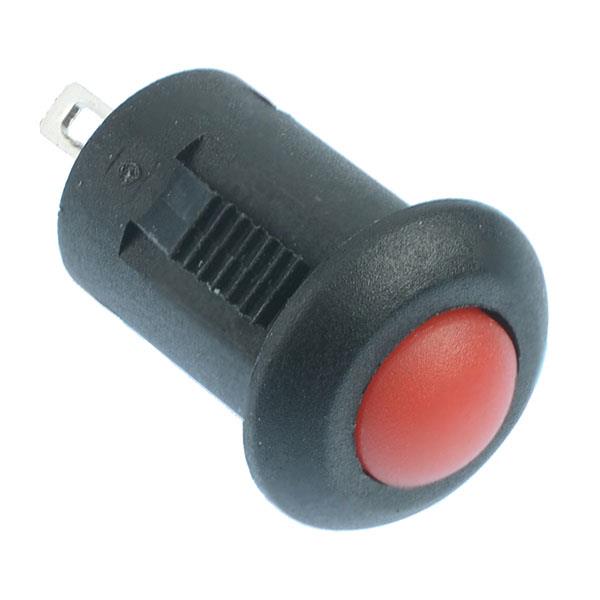

Red Off-(On) Momentary Snap-In Push Button Switch SPST
SKU 482252
MPN: 482252
Availability:
Out of stock
Sold out
Original price
£0.59
-
Original price
£0.59
Original price
£0.59
£0.59
£0.59
-
£0.59
Current price
£0.59
Momentary push button switch featuring a red button and snap-in mounting suitable for panel mount applications.
Off-(On) momentary operation 8mm panel cut-out Rating: 3A 125VAC, 1.5A 250VAC Solder lug terminals Dimensions: 18.3 x 10.5mm (Height x Diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 45 Days |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Rating | 1.5A 250VAC, 3A 125VAC |
| Current Rating | 3A @ 125VAC |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 8mm |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
