Red Off-(On) Push Button Starter Switch 50A

SKU 489056

MPN: SW7010

Availability:
266 in stock
Original price £1.41 - Original price £1.41
Original price
£1.41
£1.41 - £1.41
Current price £1.41

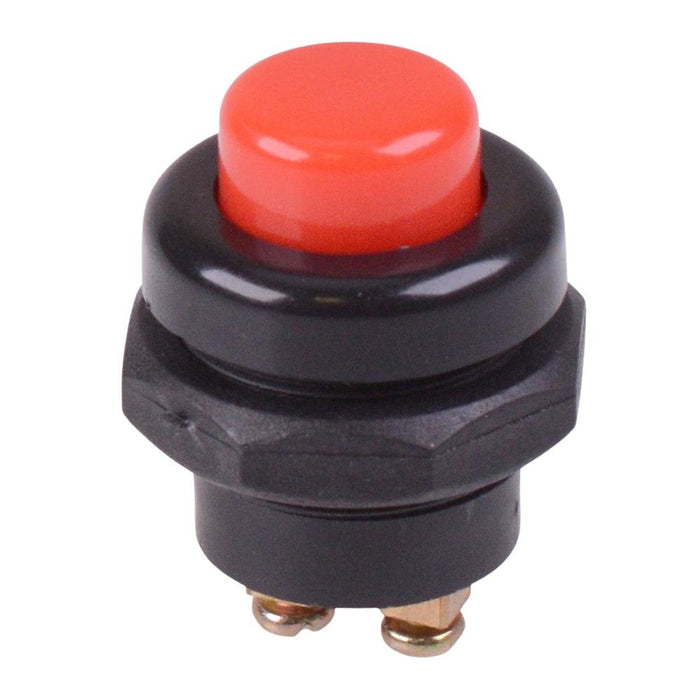

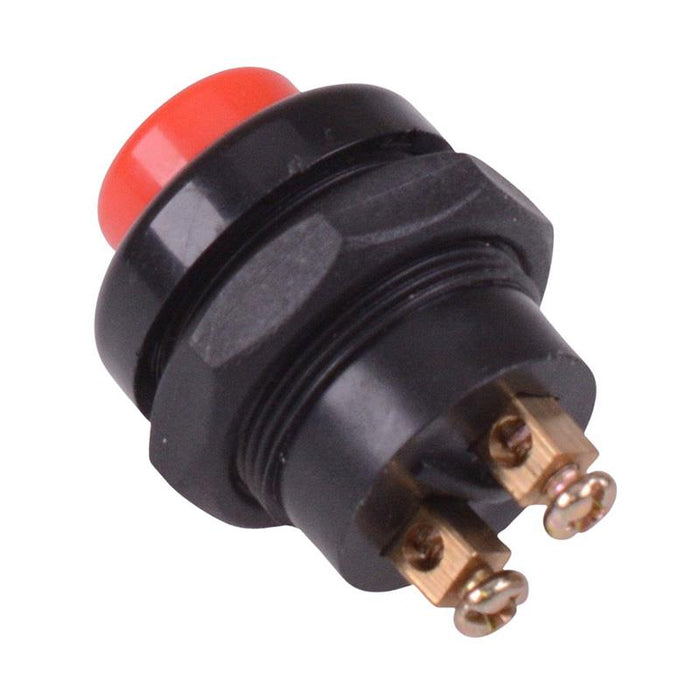

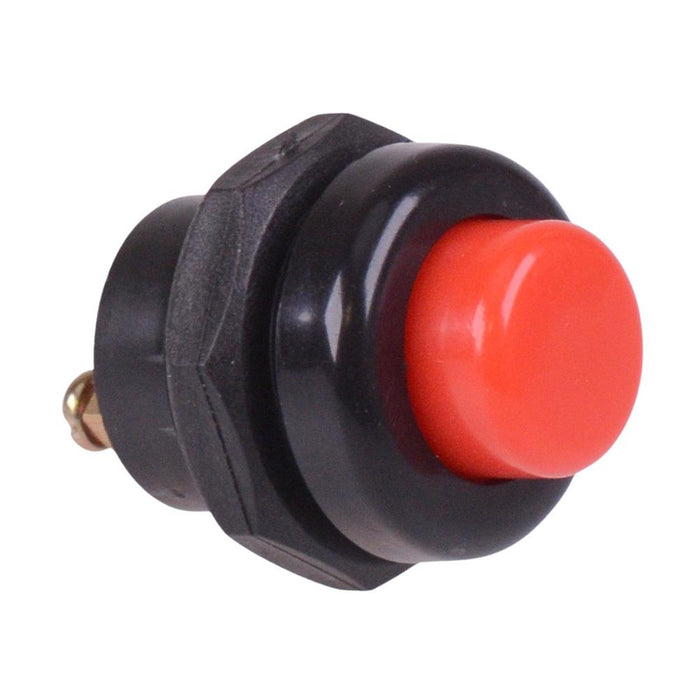

Red push button starter switch featuring a 50A current rating and screw terminals. The switch requires a 22mm panel-out and comes with a waterproof cover, suitable for automotive and marine applications.

  • Off-(On) momentary function
  • SPST contacts
  • 22mm panel cut-out
  • 50A current rating
  • Screw terminals
  • Dimensions: 37.8 x 25.0m (height x diameter)
  • Specification
    Actuation Momentary
    Back Order Lead Time 120 Days
    Colour Red
    Contact Configuration SPST
    Contact Rating 50A 24VDC
    Current Rating 50A
    Illuminated No
    MOQ 1
    Mounting Style Panel
    Number of Poles 1
    Number of Positions 2
    Panel Cut Out 22mm
    Panel Thickness 7mm Max
    Switch Operation Off-(On)
    Terminal Type Screw
    Voltage Rating 24VDC
