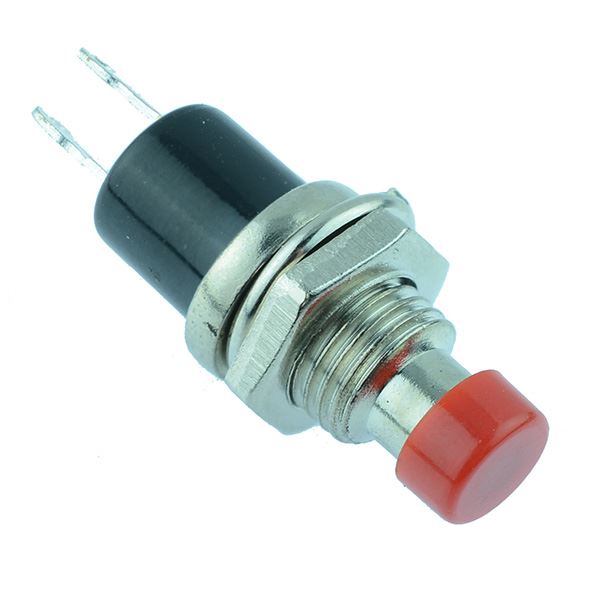

Red Off(On) Miniature Push to Make Switch SPST
SKU 103135
MPN: 103135
Availability:
847 in stock
Original price
£0.53
-
Original price
£0.53
Original price
£0.53
Inc VAT
£0.53
-
£0.53
Current price
£0.53
Inc VAT
Miniature push button switches with a push to make operation and metal housing, suitable for applications where a reliable but small size switch is required.
- Momentary switch action
- Off-(On) SPST contacts
- 7mm panel cut-out diameter
- Suitable for panel mounting
- Dimensions: 27.3 x 9.8mm (Height x Diameter)
- Maximum Panel Thickness: 2mm
Specification
| Actuation | Momentary |
| Back order lead time | 45 Days |
| Colour | Red |
| Contact configuration | SPST |
| Contact rating | 0.5A 250VAC |
| Current rating | 0.5A |
| Illuminated | No |
| Illumination colour | Non Illuminated |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 7mm |
| Switch operation | Off-(On) |
| Terminal type | Solder |
| Voltage rating | 250VAC |
