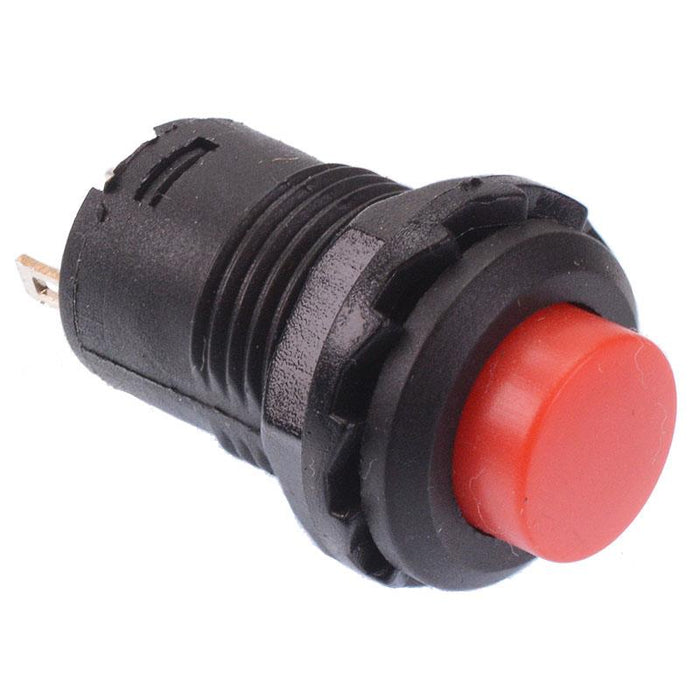

Red Off(On) Momentary Round 12mm Switch SPST

SKU 103111

MPN: 103111

Availability:
718 in stock
Original price £0.44 - Original price £0.44
Original price
£0.44 Inc VAT
£0.44 - £0.44
Current price £0.44 Inc VAT
Low cost round push button switches with a momentary operation and solder lug terminals ideal for a wide range of applications.

  • Suitable for panel mounting
  • Solder lug terminals
  • Momentary Off-(On) operation
  • SPST contacts
  • 12mm panel cut-out
  • Dimensions: 30.5 x 16.5mm (Height x Diameter)
  • Maximum Panel Thickness: 5mm
  • Specification
    Actuation Momentary
    Back Order Lead Time 40 Days
    Colour Red
    Contact Configuration SPST
    Contact Rating 1.5A 250VAC
    Current Rating 1.5A
    Electrical Life 10,000+ Cycles
    Illuminated No
    Illumination Colour Non Illuminated
    Material PA66
    Mounting Style Panel
    Number of Positions 2
    Operating Temperature -20°C to +65°C
    Panel Cut Out 12mm
    Switch Operation Off-(On)
    Terminal Type Solder
    Voltage Rating 250VAC
