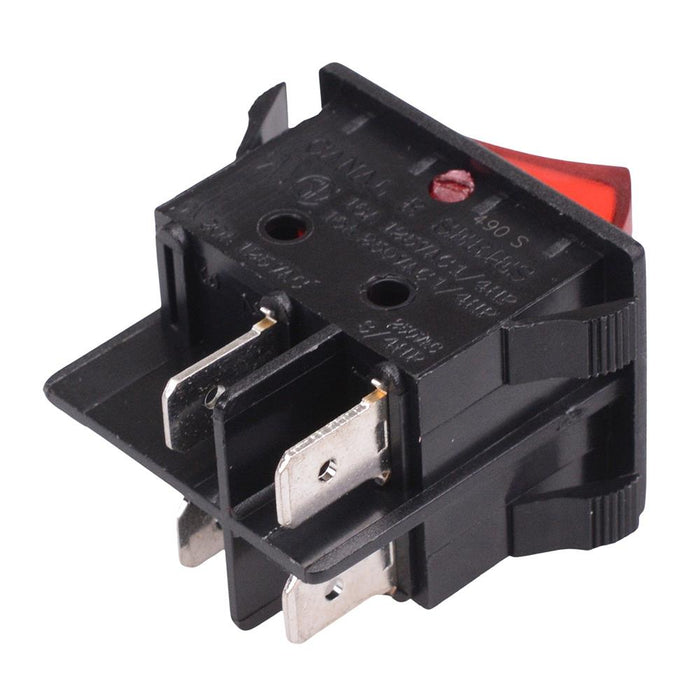

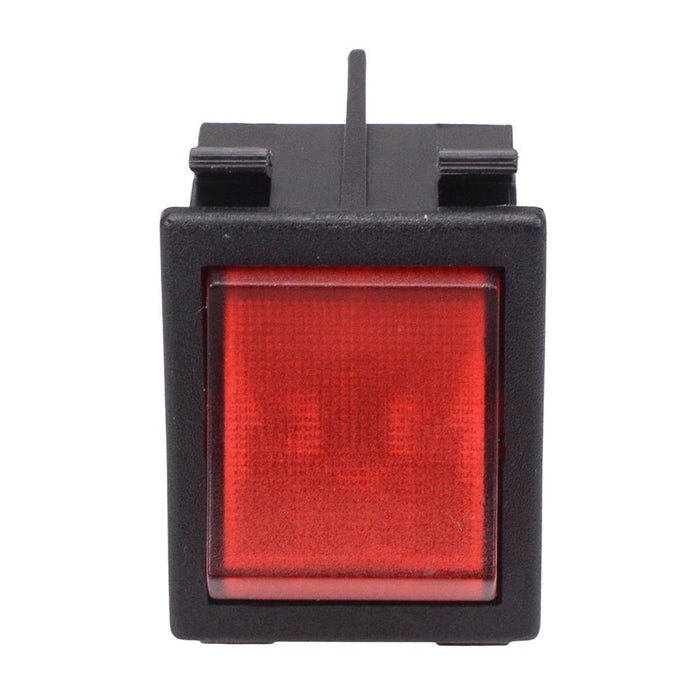

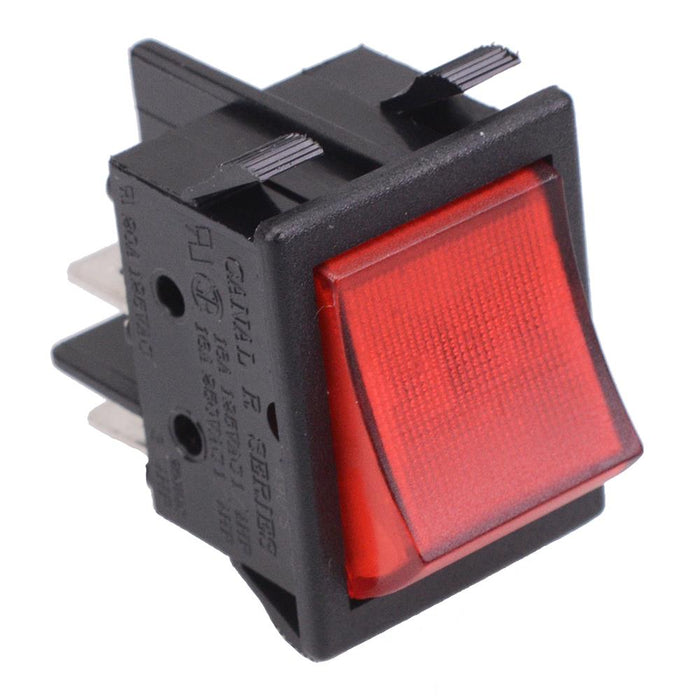

Red On-Off 22x30mm Rectangle Rocker Switch DPST 16A 250VAC
by Canal
SKU 492752
MPN: R210C2LBR
Availability:
2905 in stock
Original price
£0.71
-
Original price
£0.71
Original price
£0.71
£0.71
-
£0.71
Current price
£0.71
Red rectangle rocker switch featuring DPST contacts and On-Off function. The switch requires a 30.2x22mm panel cut-out and quick connect 6.3mm terminals. The switch is rated up to 16A making it suitable for a wide range of AC applications including appliances and industrial.
Function: On-Off Contacts: DPST Panel cut-out: 30.2x22mm Rating: 16A 250VAC 6.3mm quick connect terminals Dimensions: 37.6 x 25.2 x 33.5mm (height x width x length) UL approved
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 Days |
| Contact Configuration | DPST |
| Contact Rating | 16(4)A 250VAC |
| Current Rating | 16A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Panel Cut Out | 30.2 x 22mm |
| Panel Thickness | 0.75-1.25mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
