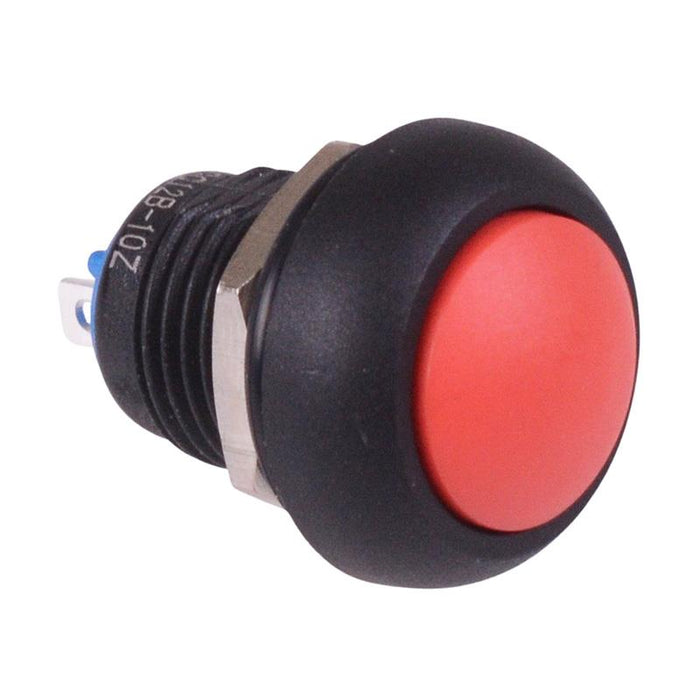

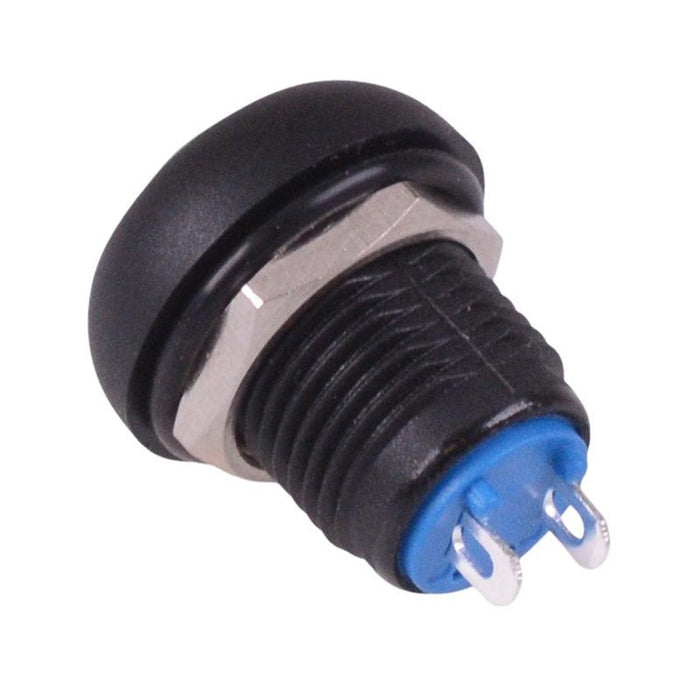

Red On-Off Latching 12mm Waterproof Push Button Switch IP65 SPST

SKU 490270

MPN: HBGQ12B-10Z/J/PA/R

Availability:
54 in stock
Original price £3.31 - Original price £3.31
Original price
£3.31
£3.31 - £3.31
Current price £3.31
Red latching push button switch featuring a round actuator and SPST contacts. The switch features IP65 protection rating and is suitable for mounting in 12mm diameter cut-outs. The switch is suitable for a wide range of applications including automotive, control panels, industrial, appliances etc.

  • Latching operation
  • SPST contacts
  • IP65 protection rating
  • 2.8x0.5mm quick connect terminals
  • Panel cut-out: 12mm
  • Panel thickness: 6mm max
  • Rating: 2A 250V
  • Dimensions: 24.75 x 18mm (height x diameter)
  • Specification
    Actuation Latching
    Back Order Lead Time 45 Days
    Colour Red
    Contact Configuration SPST
    Contact Rating 2A 250VAC
    Current Rating 2A
    Electrical Life 50,000 Cycles
    Illuminated No
    Material PA66
    MOQ 1
    Mounting Style Panel
    Number of Poles 1
    Number of Positions 2
    Operating Temperature -25°C to +65°C
    Panel Cut Out 12mm
    Panel Thickness 6mm Max
    Protection Level IP65
    Switch Operation On-Off
    Terminal Type Quick Connect
    Voltage Rating 250VAC
