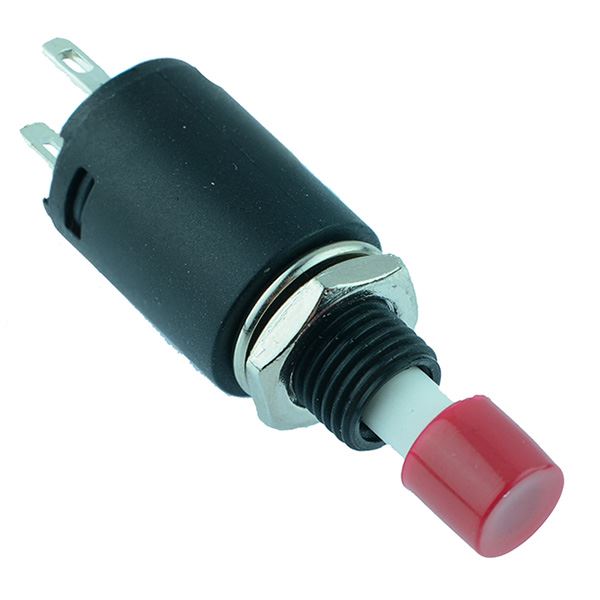

Red On-Off Latching Small Button Push Switch SPST R13-512B1

by SCI
SKU 120027

MPN: R13-512B1-05 Red

1787 in stock
Original price £1.01 - Original price £1.01
Original price
£1.01 Inc VAT
£1.01 - £1.01
Current price £1.01 Inc VAT
Panel mounting SPST latching push button switch with small red actuator.

  • On-off operation
  • SPST contacts
  • Silver plated brass contacts
  • 7mm panel cut-out
  • 4mm maximum panel thickness
  • 6mm diameter button
  • Dimensions: 37.5 x 11.5mm (Length x Diameter
  • SCI R13-512 series
  • Specification
    Actuation Latching
    Back order lead time 120 Days
    Colour Red
    Contact configuration SPST
    Contact rating 1.5A 250VAC
    Current rating 1.5A
    Illuminated No
    Illumination colour Non Illuminated
    Mounting style Panel
    Number of positions 2
    Panel cut out 7mm
    Switch operation On-Off
    Terminal type Solder
    Voltage rating 250VAC
    Request a quote
