Red On-Off Rocker Switch 19.2 x 13mm Switch SPST 15A
SKU 488156
MPN: RA15KRESOF
Availability:
165 in stock
Original price
£0.54
-
Original price
£0.54
Original price
£0.54
£0.54
-
£0.54
Current price
£0.54

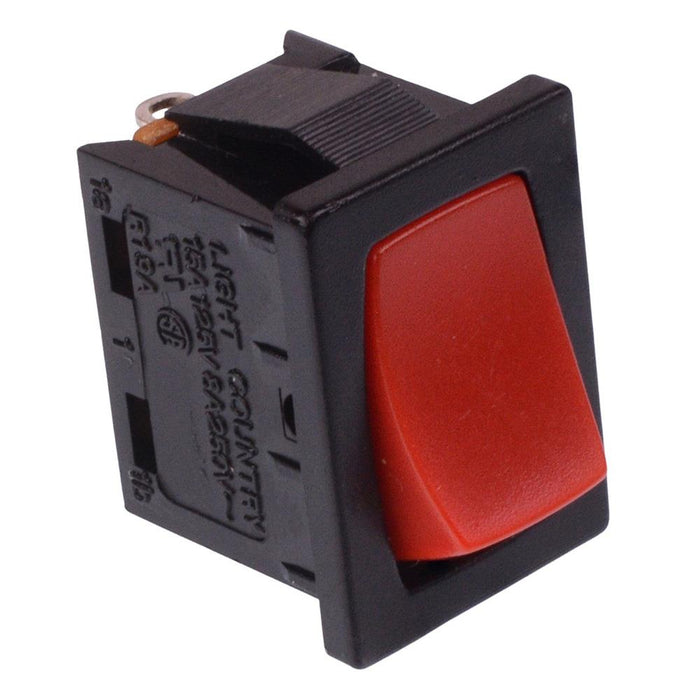

Red actuator On-Off rocker switch featuring a 19.2 x 13mm panel cut-out and SPST contacts. The switch features a 10A 250VAC rating and quick connect terminals, suitable for a wide range of applications.
Red actuator SPST contacts On-Off function Rating: 10A 250VAC, 15A 125VAC Panel cut-out: 19.2 x 13mm Dimensions: 20.8 x 14.8mm (length x width) 4.8mm quick connect terminals
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 Days |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Material | Silver Alloy |
| Contact Rating | 10A 250VAC |
| Current Rating | 15A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Material | PA66 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +85°C |
| Panel Cut Out | 19.2 x 13mm |
| Panel Thickness | 0.7-3mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
