Red On-(On) 28mm Vandal Momentary Push Button Switch DPDT 12V
SKU 486525
MPN: 486525
Availability:
14 in stock
Original price
£12.14
-
Original price
£12.14
Original price
£12.14
£12.14
£12.14
-
£12.14
Current price
£12.14

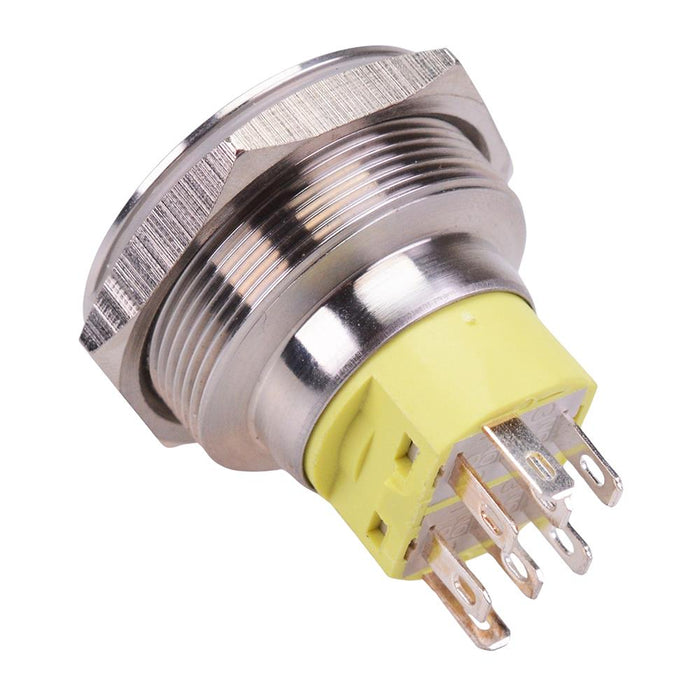

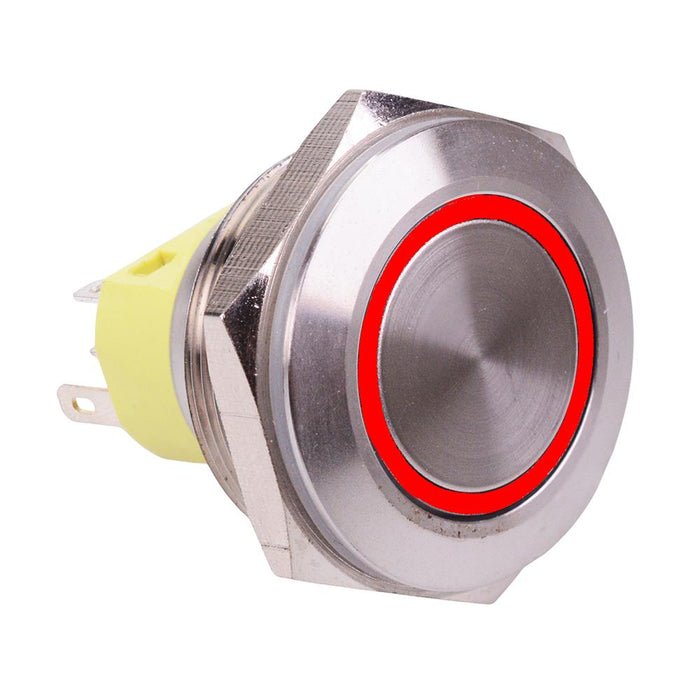

Momentary vandal resistant 28mm push button switch featuring a red 12V LED and DPDT contacts. The switch is manufactured from stainless steel and features IP67 protection rating, making it suitable for a wide range of automotive and other 12V applications.
Momentary action Red LED 12V illumination voltage IP67 protection rating 28mm panel cut-out diameter 2NO/2NC contacts 2.8mm terminals Rating: 5A 250VAC
Specification
| Actuation | Momentary |
| Back Order Lead Time | 30 Days |
| Contact Configuration | SPDT |
| Contact Rating | 5A 250VAC |
| Current Rating | 5A |
| Electrical Life | 50,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 12VDC |
| Material | Stainless Steel |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +85°C |
| Panel Cut Out | 28mm |
| Protection Level | IP67 |
| Switch Operation | On-(On) |
