Red Positive M8 Stud 8 Point Power Distribution Post 150A

SKU 491004

MPN: SE661-M8R

Availability:
Out of stock
Sold out
Original price £6.54 - Original price £6.54
Original price
£6.54
£6.54 - £6.54
Current price £6.54

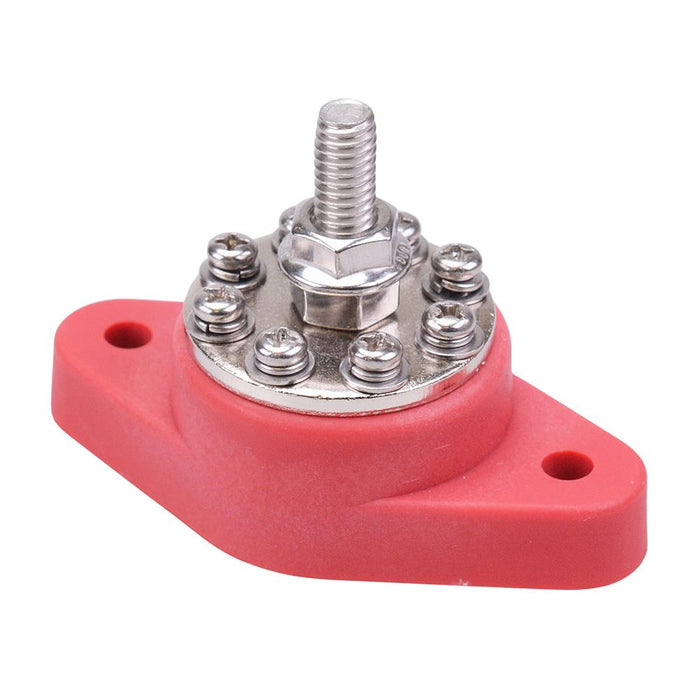

Red distribution post featuring an M8 central stud and 8 small M4 terminals. The post is designed for distributing a larger main feed into lower current circuits, and is more compact than traditional busbars. Suitable applications including automotive and marine with limited space.

  • Stud size: M8 and M4
  • Stud material: stainless steel
  • Housing material: nylon
  • Voltage rating: 48VDC
  • Current rating: 160A (20A per stud)
  • Comes with 2 screws
  • Mounting holes: 6.5mm
  • Mounting hole pitch: 64.5mm
  • Dimensions: 55.0 x 44.7 x 84.8mm (height x width x length)
  • Specification
    Back Order Lead Time 120 Days
    Colour Red
    Current Rating 150A
    MOQ 1
    Mounting Type Chassis Mount
    Termination Method M8 Stud
    Voltage Rating 48VDC
