Red Push-Fit 16mm Momentary Off-(On) Push Button Switch 3A SPST
SKU 482789
MPN: 482789
Availability:
9 in stock
Original price
£0.38
-
Original price
£0.38
Original price
£0.38
£0.38
£0.38
-
£0.38
Current price
£0.38

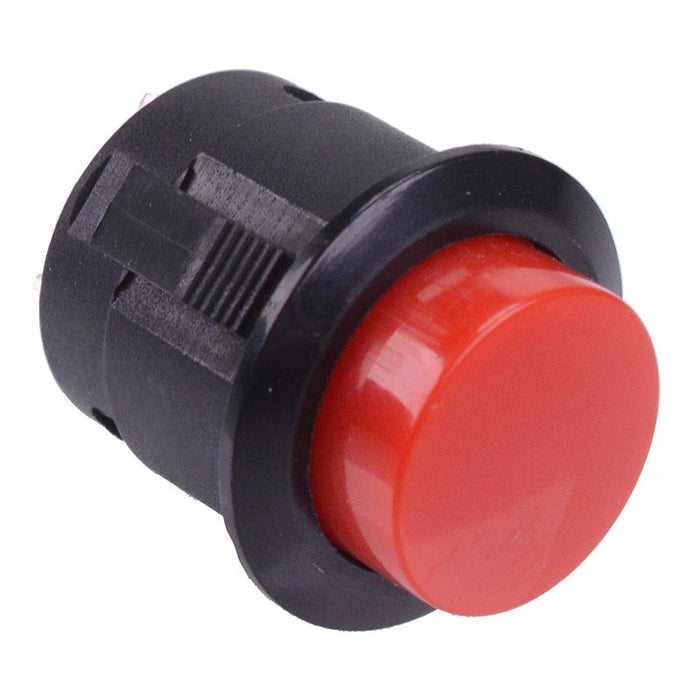

Red momentary push fit switch featuring Off-(On) action and SPST contacts. The switch requires a 16mm panel cut-out and is easy to install making it suitable for a wide range of applications.
Off-(On) action SPST contacts 16mm panel cut-out diameter Push-fit panel mounting Rating: 3A 250VAC Dimensions: 26.5 x 19mm (Height x Diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 40 Days |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Rating | 3A 250VAC |
| Current Rating | 3A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 16mm |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
