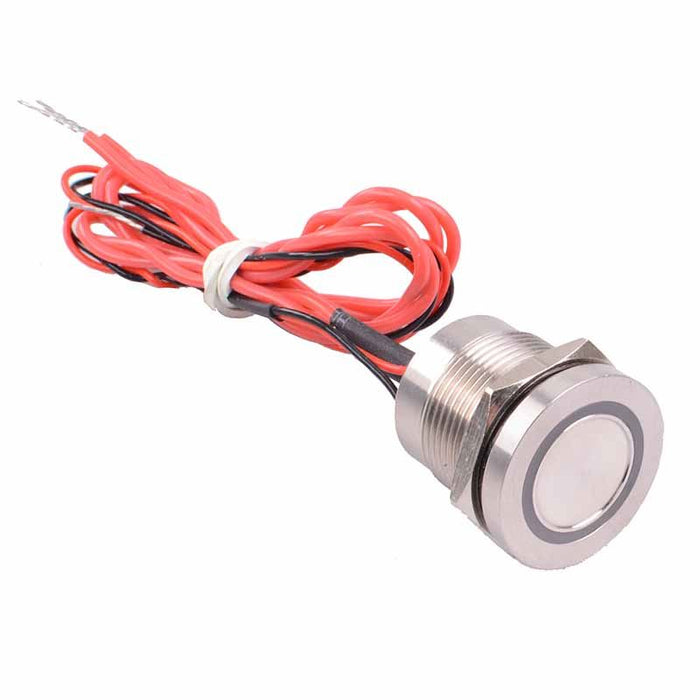

Red Ring LED Off-(On) 19mm Metal Momentary Piezo Switch NO SPST
by Langir
SKU 482235
MPN: PZ-19BR2FN1NOMR
Availability:
14 in stock
Original price
£24.99
-
Original price
£24.99
Original price
£24.99
£24.99
-
£24.99
Current price
£24.99
Red LED momentary piezo switch featuring a sealed and vandal proof design providing solid state switching. The switch has a life expectancy of over 50 million cycles and is ideal for demanding applications where reliability is critical.
NO momentary function Red LED 12VDC illumination 19mm panel cut-out diameter 3mm height flat operator 22mm diameter head Flying leads Rating: 200mA 24VAC/DC
Specification
| Actuation | Momentary |
| Back Order Lead Time | 45 Days |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Rating | 0.2A 24V |
| Current Rating | 0.2A |
| Electrical Life | 50,000,000+ Cycles |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 12VDC |
| Material | Aluminium |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +75°C |
| Panel Cut Out | 19mm |
| Protection Level | IP68 |
| Switch Operation | Off-(On) |
| Terminal Type | Flying Leads |
| Voltage Rating | 24VDC |
