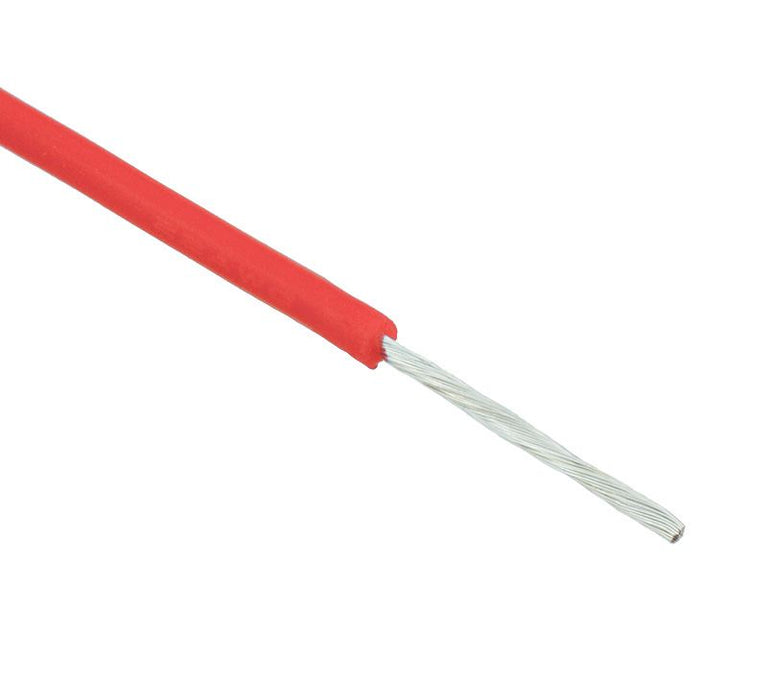

Red Silicone Lead Wire 22AWG 60/0.08mm (price per metre)

SKU 403014

MPN: 403014

Availability:
1366 in stock
Original price £0.55 - Original price £0.55
Original price
£0.55 Inc VAT
£0.55 - £0.55
Current price £0.55 Inc VAT
Silicone insulated wire with a copper conductor suitable for a wide range of applications.

  • Wide temperature range
  • Flexible and lightweight
  • Rated voltage: 600V
  • 60/0.08mm copper stranding
  • Cut to length in pieces up to 25 metres
  • Specification
    Back order lead time 120 Days
    Colour Red
    Conductor cross section 0.33mm²
    Conductor diameter 0.78mm
    Conductor material Tinned Copper
    Conductor stranding 60/0.08mm
    Current rating 8.7A
    Insulation material Silicone
    Insulation thickness 0.55mm
    Operating temperature -60°C to 200°C
    Overall diameter 1.7mm
    Voltage rating 600V
    Wire gauge 22AWG
