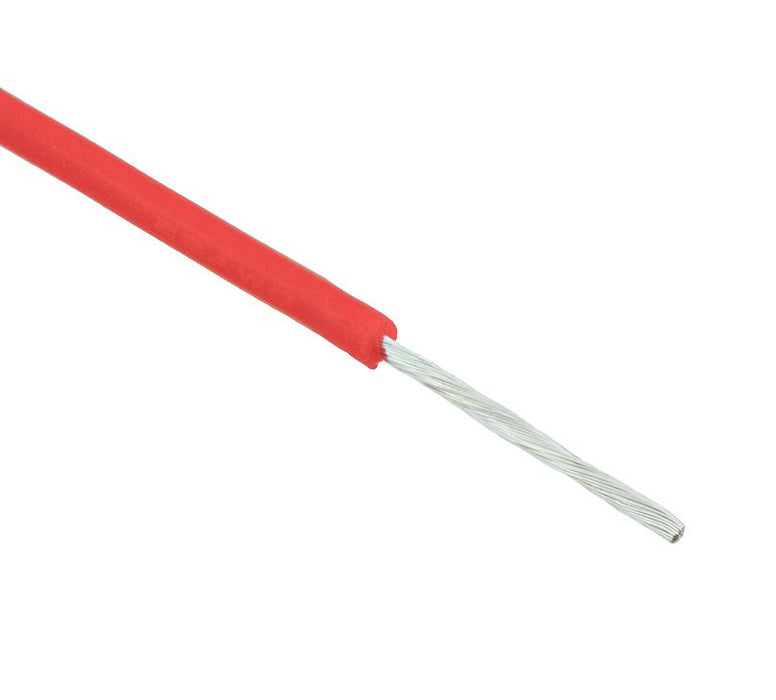

Red Silicone Lead Wire 24AWG 40/0.08mm (price per metre)

SKU 403020

MPN: 403020

1258 in stock
Original price £0.51 - Original price £0.51
Original price
£0.51 Inc VAT
£0.51 - £0.51
Current price £0.51 Inc VAT
Silicone insulated wire with a copper conductor suitable for a wide range of applications.

  • Wide temperature range
  • Flexible and lightweight
  • Rated voltage: 600V
  • 40/0.08mm copper stranding
  • Cut to length in pieces up to 25 metres
  • Specification
    Back order lead time 120 Days
    Colour Red
    Conductor cross section 0.2mm²
    Conductor diameter 0.61mm
    Conductor material Tinned Copper
    Conductor stranding 40/0.08mm
    Current rating 5A
    Insulation material Silicone
    Insulation thickness 0.5mm
    Operating temperature -60°C to 200°C
    Overall diameter 1.6mm
    Voltage rating 600V
    Wire gauge 24AWG
