Red Square Off-(On) Momentary 12mm Metal Push Button Switch IP65 SPST

SKU 490281

MPN: HBGQ12S-10/J/A/R

Availability:
95 in stock
Original price £2.87 - Original price £2.87
Original price
£2.87
£2.87 - £2.87
Current price £2.87

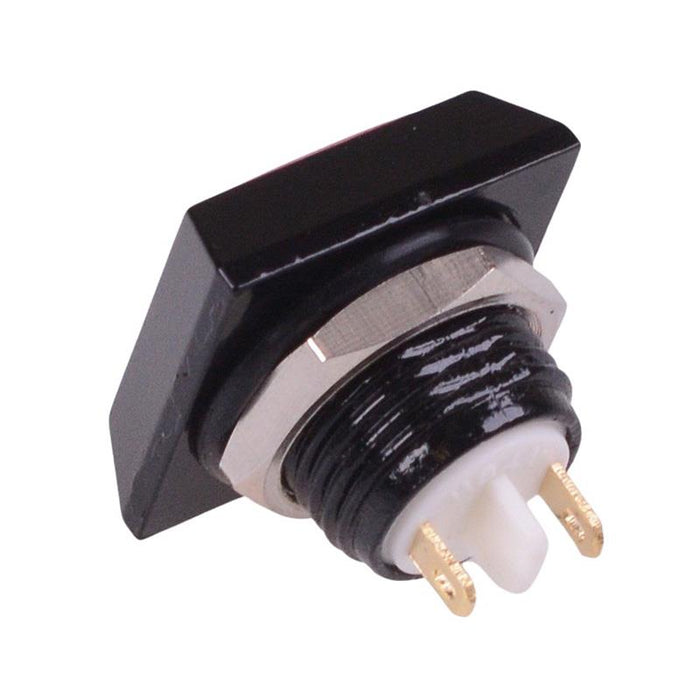

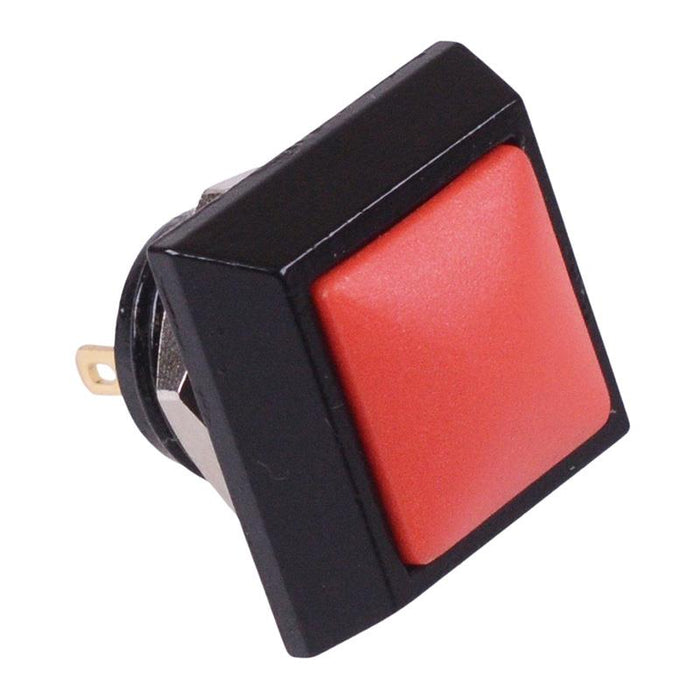

Red momentary push button switch featuring a square actuator and normally open contacts. The switch features a zinc alloy housing and is suitable for mounting in 12mm diameter cut-outs. The switch is suitable for a wide range of applications including automotive, control panels, industrial, appliances etc.

  • Momentary operation
  • SPST-NO contacts
  • IP65 protection rating
  • Solder terminals
  • Panel cut-out: 12mm
  • Panel thickness: 5mm max
  • Rating: 3A 250V
  • Dimensions: 20.2 x 17.6 x 17.6mm (height x width x length)
  • Specification
    Actuation Momentary
    Back Order Lead Time 45 Days
    Colour Red
    Contact Configuration SPST
    Contact Rating 3A 250VAC
    Current Rating 3A
    Electrical Life 50,000 Cycles
    Illuminated No
    Material Zinc Alloy
    MOQ 1
    Mounting Style Panel
    Number of Poles 1
    Number of Positions 2
    Operating Temperature -25°C to +65°C
    Panel Cut Out 12mm
    Panel Thickness 5mm Max
    Protection Level IP65
    Switch Operation Off-(On)
    Terminal Type Solder
    Voltage Rating 250VAC
