Red Subminiature Axial 1.8mm Water Clear LED 2000mcd 25°
by Luckylight
SKU 484907
MPN: AR180VC-2B
Availability:
3672 in stock
Original price
£0.14
-
Original price
£0.14
Original price
£0.14
Inc VAT
£0.14
-
£0.14
Current price
£0.14
Inc VAT

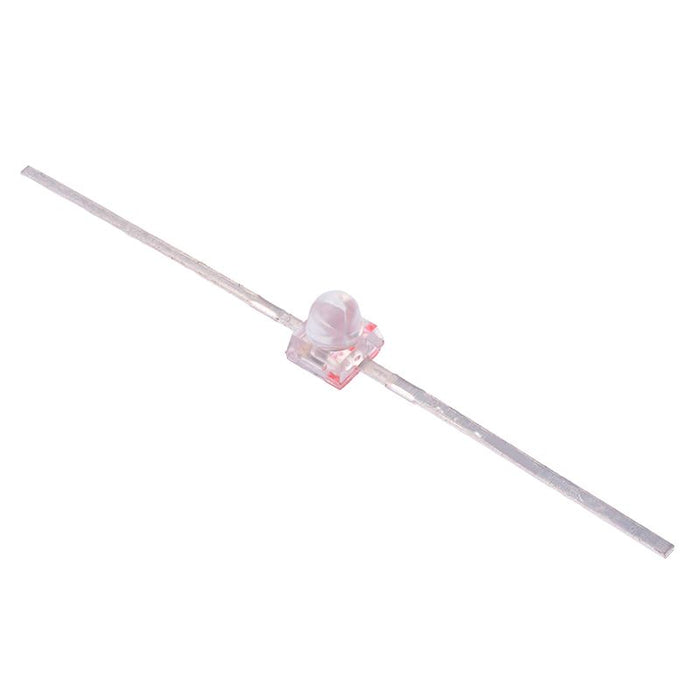

Red miniature LED featuring a 1.8mm water clear lens and double ended axial package. The LED is much smaller than leaded components making them suitable for smaller PCB sizes and higher packing densities. Common applications include backlighting and indication.
Luminous intensity: 2000mcd Wavelength: 624nm Viewing angle: 25° Forward voltage: 2.0V Forward current: 25mA 2.15*2.40mm with 1.80mm lens Water clear lens Excellent weather resistance Long lifespan
Specification
| Back order lead time | 40 Days |
| Colour | Red |
| Diameter | 1.8mm |
| Forward current | 25mA |
| Forward voltage | 2.0V |
| Lens colour | Clear |
| Lens shape | Round |
| Luminous intensity | 2000mcd |
| Mode | Constant |
| Moq | 5 |
| Mounting style | Through Hole |
| Number of pins | 2 |
| Operating temperature | -40°C to +80°C |
| Package | 1.8mm |
| Packaging | Bulk |
| Power dissipation | 60mW |
| Viewing angle | 25° |
| Wavelength | 624nm |
