Red Waterproof 24V LED 20mm Round Rocker Switch SPST 10A R13-112B8W-02
by SCI
SKU 491474
MPN: R13-112B8W-02-BRNN-0A-L2
Availability:
20 in stock
Original price
£2.16
-
Original price
£2.16
Original price
£2.16
£2.27
£2.27
-
£2.27
Current price
£2.27

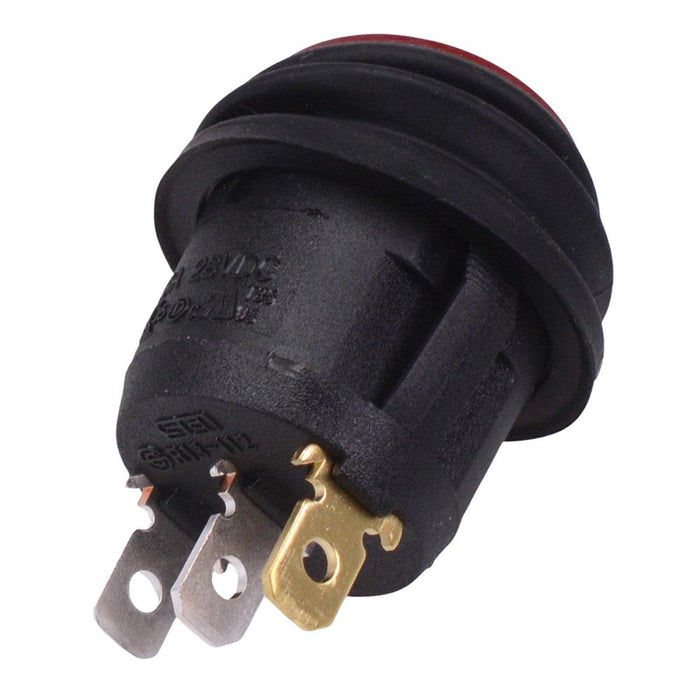

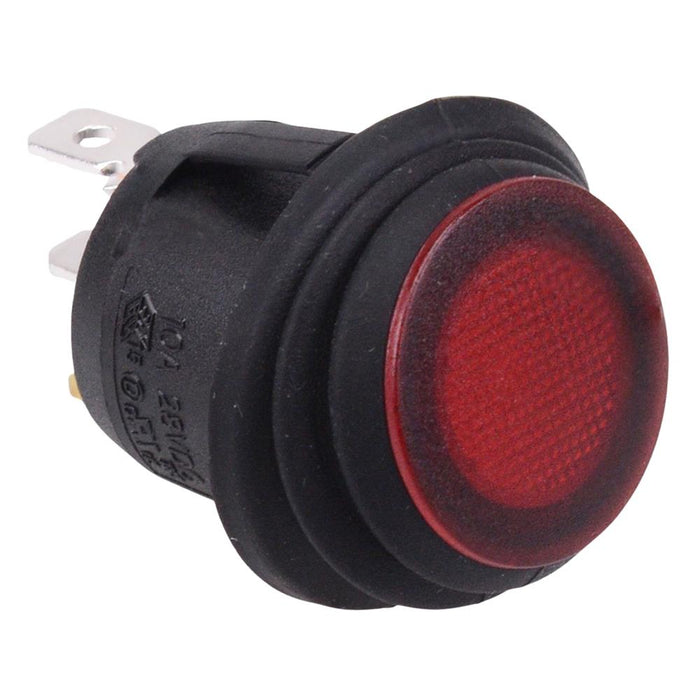

Waterproof illuminated circular rocker switch featuring red LED illumination and SPST contacts. The switch requires a 20mm panel cut-out and features 4.8mm quick connect terminals. The switch is suitable for a wide range of DC applications.
Red LED illumination voltage: 24VDC Function: On-Off Contacts: SPST Panel cut-out: 20.2mm Panel thickness: 0.7-3mm Protection level: IP65 Terminals: 4.8mm quick connect Rating: 10A 28VDC, 20A 12VDC
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Rating | 10A 24VDC |
| Current Rating | 10A |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 24VDC |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +85°C |
| Panel Cut Out | 20.2mm |
| Panel Thickness | 0.7-2.5mm |
| Protection Level | IP65 |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 24VDC |
