Red / Yellow 12V LED On-Off-On Rectangle Rocker Switch SPDT 21A R13-271D3-01
by SCI
SKU 491453
MPN: R13-271D3-01-BBRY
Availability:
20 in stock
Original price
£3.78
-
Original price
£3.78
Original price
£3.78
£3.78
£3.78
-
£3.78
Current price
£3.78

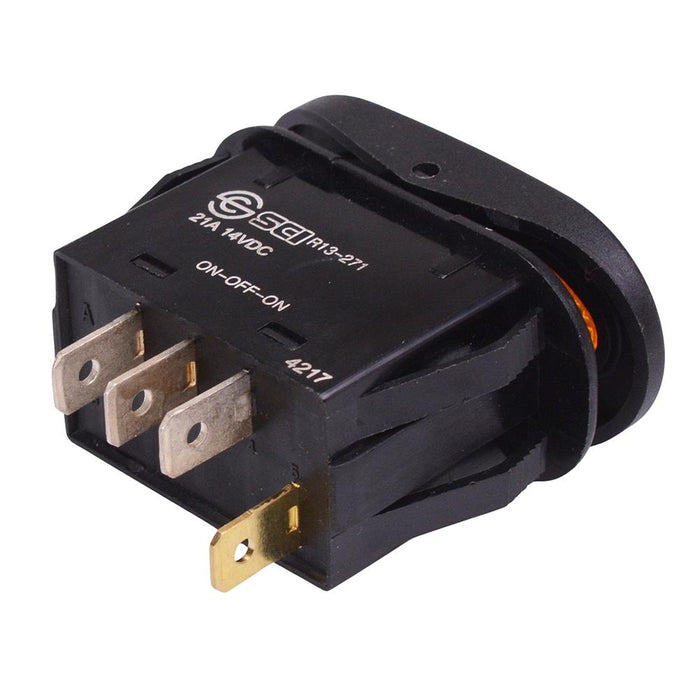

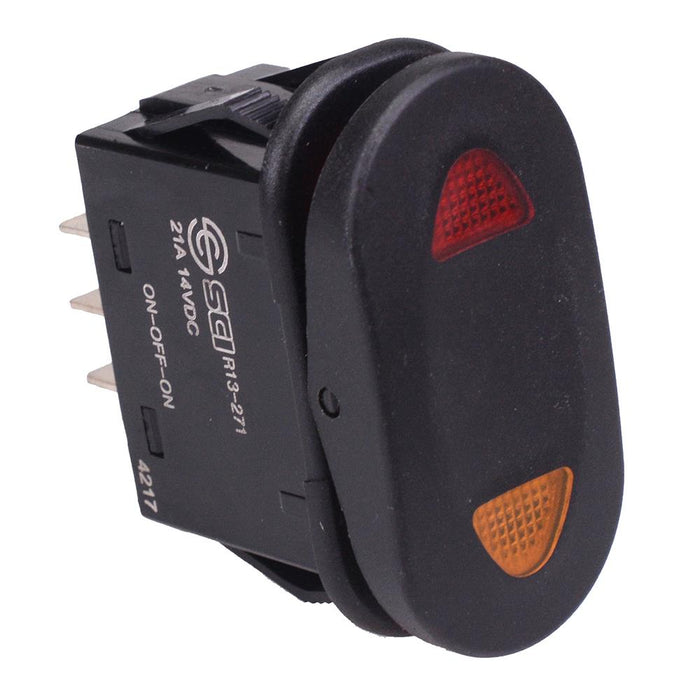

R13-271D3-01 rectangle rocker switch featuring red / yellow 12V illumination and SPDT contacts. The switch requires a 36.6 x 21.2mm panel cut-out and features 6.3mm quick connect terminals. The switch is rated up to 21A and is suitable for a wide range of DC automotive applications.
Function: On-Off-On Contacts: SPDT Red / Yellow 12V LED illumination Panel cut-out: 36.6 x 21.2mm Panel thickness: 0.75-3mm Rating: 21A 14VDC 6.3mm quick connect terminals Dimensions: 47.7 x 24 x 46.1mm (length x width x height)
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Colour | Red / Yellow |
| Contact Configuration | SPDT |
| Contact Rating | 21A 14VDC |
| Current Rating | 21A |
| Illuminated | Yes |
| Illumination Colour | Red / Yellow |
| Illumination Voltage | 12VDC |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 3 |
| Operating Temperature | -20°C to +85°C |
| Panel Cut Out | 36.6 x 21.2mm |
| Panel Thickness | 0.75-3mm |
| Switch Operation | On-Off-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 14VDC |
