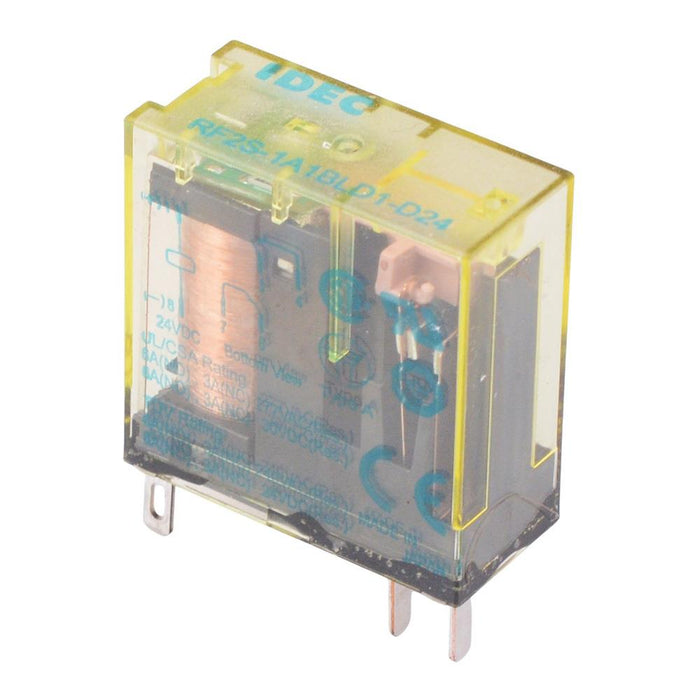

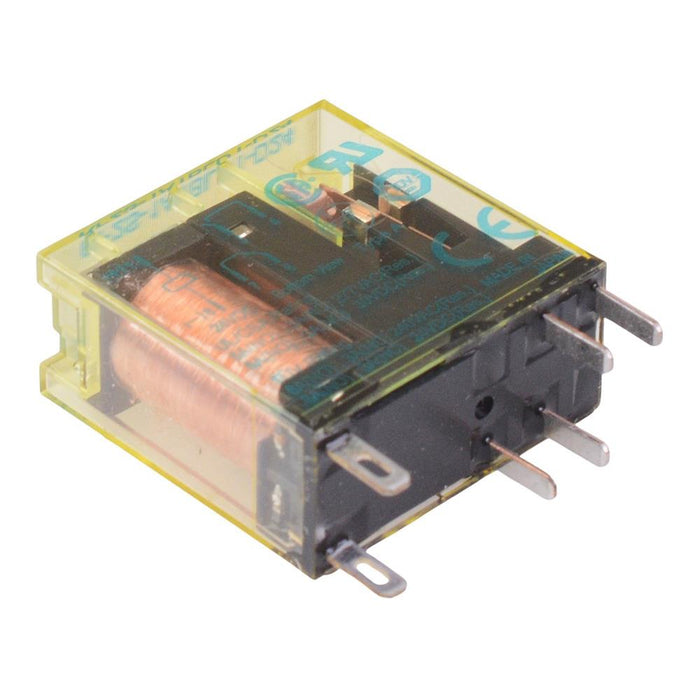

RF2S-1A1BLD1-D24 24VDC Plug-In 2-Pole Force Guided Relay LED Diode 1NO-1NC IDEC

by IDEC
SKU 490237

MPN: RF2S-1A1BLD1-D24

Availability:
20 in stock
Original price £22.95 - Original price £22.95
Original price
£22.95
£22.95 - £22.95
Current price £22.95
The RF2S-1A1BLD1-D24 is a 2 pole force guided relay by IDEC, featuring a compact package and mechanical indicator. The relay features a rapid response time ensuring safety by turning the load off quickly. The relay is suitable for use in machine tools and high vibration environments due to the excellent shock resistance. The relay features plug-in terminals and its compatible with the finger-safe SJ series sockets.

  • Coil voltage: 24VDC
  • Allowable switching curent: 6A
  • With LED indicator
  • With diode
  • Contact configuration: 2-pole 1NO-1NC
  • Plug-in terminals
  • Compatible socket: SJ2S-05BW, SJ2S-07LW, SJ2S-61
  • Dimensions: 28 x 12.7 x 25.4mm (length x width x height)
  • Force guided contact mechanism (EN50205 Type A TUV approved)
  • Specification
    Ambient Temperature -40°C to +85°C
    Back Order Lead Time 130 Days
    Coil Resistance 820Ω
    Coil Voltage 24VDC
    Contact Arrangement 1NO-1NC
    Maximum Continuous Voltage 26.4VDC
    Maximum Switching Current 6A
    MOQ 1
    Mounting Type Plug In
    Number of Contacts 6
    Rated Load NO 6A 240VAC / 24VDC, NC 3A 240VAC / 24VDC
    Terminal Type Plug-In
