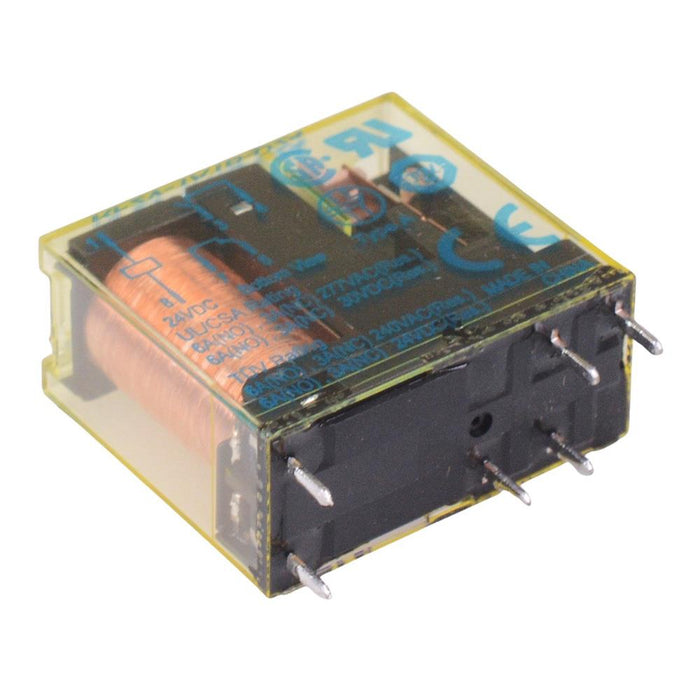

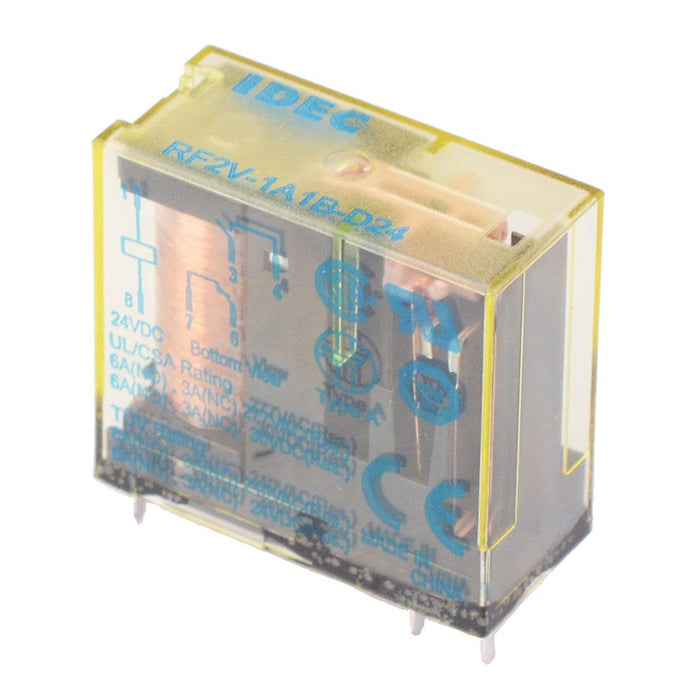

RF2V-1A1B-D24 24VDC PCB 2-Pole Force Guided Relay 1NO-1NC IDEC

by IDEC
SKU 490239

MPN: RF2V-1A1B-D24

Availability:
10 in stock
Original price £18.08 - Original price £18.08
Original price
£18.08
£18.08 - £18.08
Current price £18.08
The RF2V-1A1B-D24 is a 2 pole force guided relay by IDEC, featuring a compact package. The relay features a rapid response time ensuring safety by turning the load off quickly. The relay is suitable for use in machine tools and high vibration environments due to the excellent shock resistance.

  • Coil voltage: 24VDC
  • Allowable switching curent: 6A
  • Without LED indicator
  • Contact configuration: 2-pole 1NO-1NC
  • PCB terminals
  • Dimensions: 28 x 12.7 x 25.4mm (length x width x height)
  • Force guided contact mechanism (EN50205 Type A TUV approved)
  • Specification
    Ambient Temperature -40°C to +85°C
    Back Order Lead Time 130 Days
    Coil Resistance 820Ω
    Coil Voltage 24VDC
    Contact Arrangement 1NO-1NC
    Maximum Continuous Voltage 26.4VDC
    Maximum Switching Current 6A
    MOQ 1
    Mounting Type PCB
    Number of Contacts 6
    Rated Load NO 6A 240VAC / 24VDC, NC 3A 240VAC / 24VDC
    Terminal Type Through Hole
