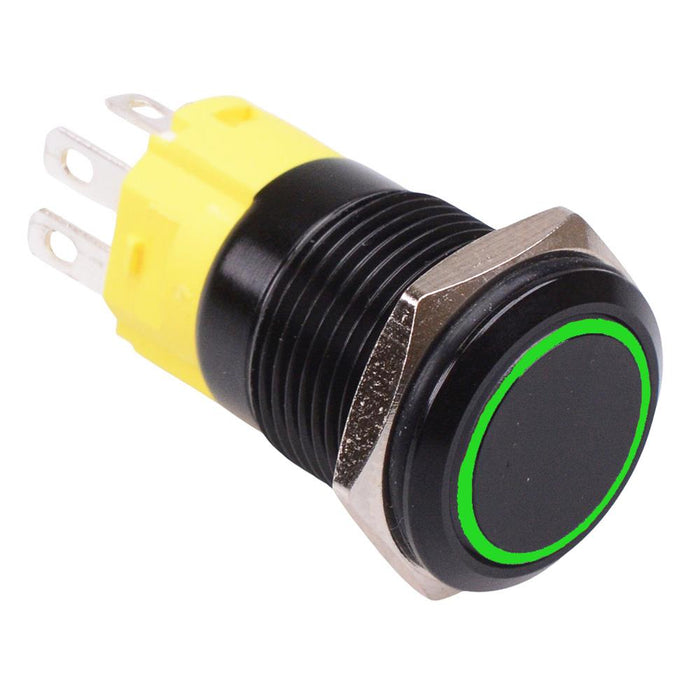

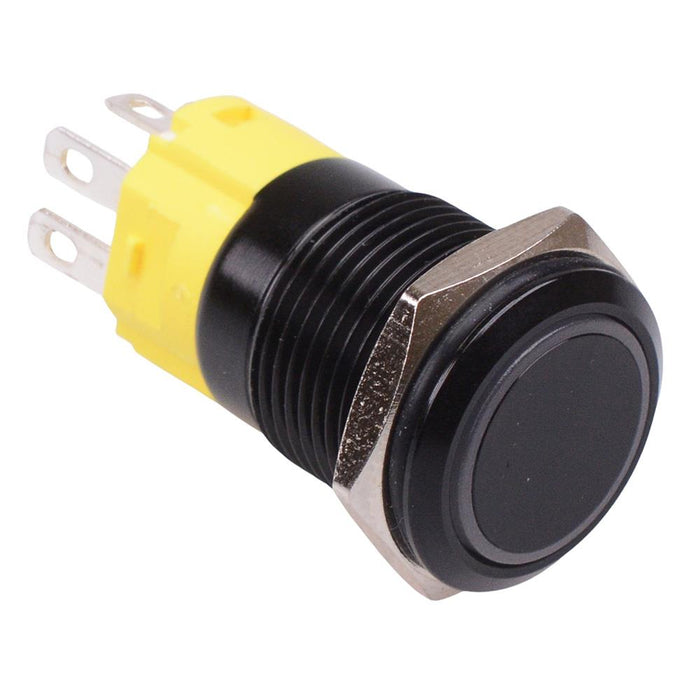

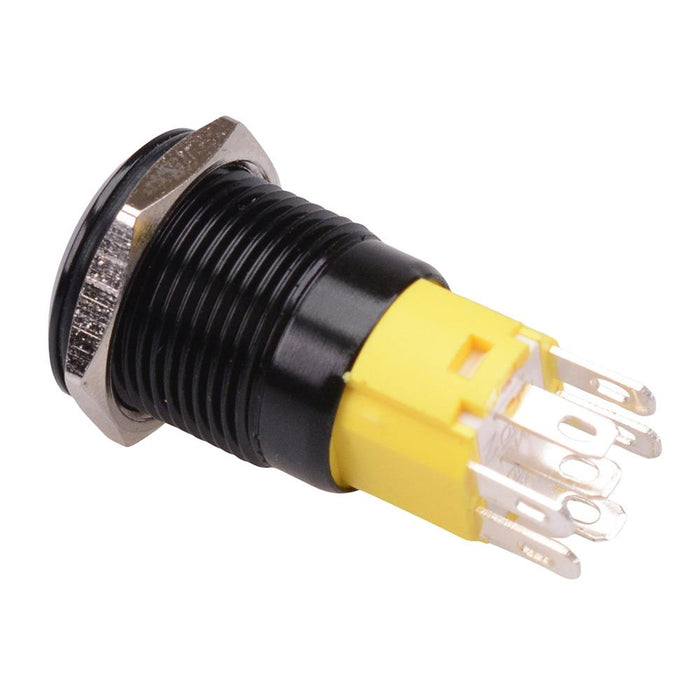

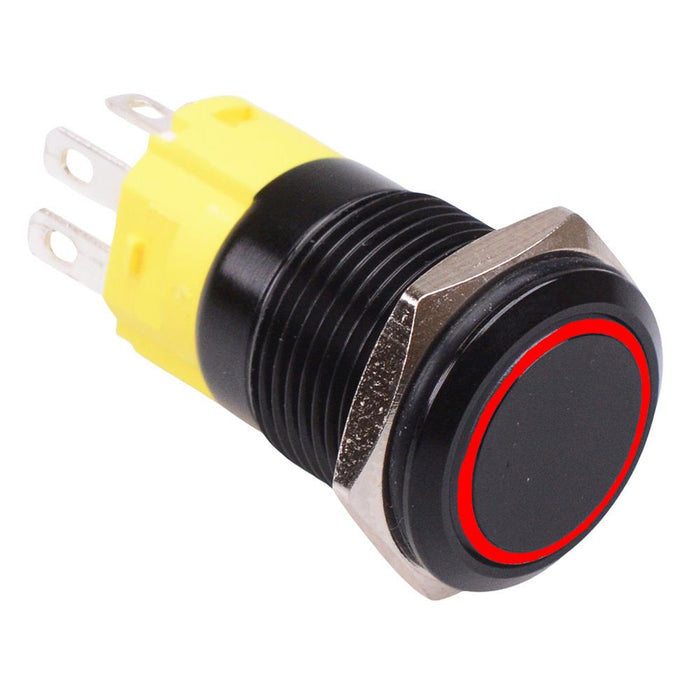

RGB 16mm Black Latching Vandal Metal Push Button Switch 12V SPDT

SKU 490472

MPN: FLM16-FJ-1-EX000-A11Z7_GRGB012V

Availability:
50 in stock
Original price £9.31 - Original price £9.31
Original price
£9.31
£9.31 - £9.31
Current price £9.31
RGB 16mm latching vandal resistant push button switch featuring a 12V LED and SPDT contacts. The switch is manufactured from zinc and features IP67 protection rating, making it suitable for a wide range of automotive and other 12V applications.

  • Common anode
  • 1NO 1NC contacts
  • Latching switch action
  • RGB LED
  • 12V LED illumination
  • 2.8x0.5mm terminals
  • 16mm panel cut-out
  • Rating: 3A 250VAC
  • Dimensions: 35.2 x 17.8mm (height x diameter)
  • Specification
    Actuation Latching
    Back Order Lead Time 30 Days
    Colour RGB
    Contact Configuration NO/NC
    Contact Rating 3A 250VAC
    Current Rating 3A
    Electrical Life 50,000 Cycles
    Illuminated Yes
    Illumination Colour RGB
    Material Zinc Alloy
    MOQ 1
    Mounting Style Panel
    Number of Poles 1
    Number of Positions 2
    Operating Temperature -25°C to +85°C
    Panel Cut Out 16mm
    Protection Level IP65
    Switch Operation On-On
    Terminal Type Quick Connect
    Voltage Rating 250VAC
