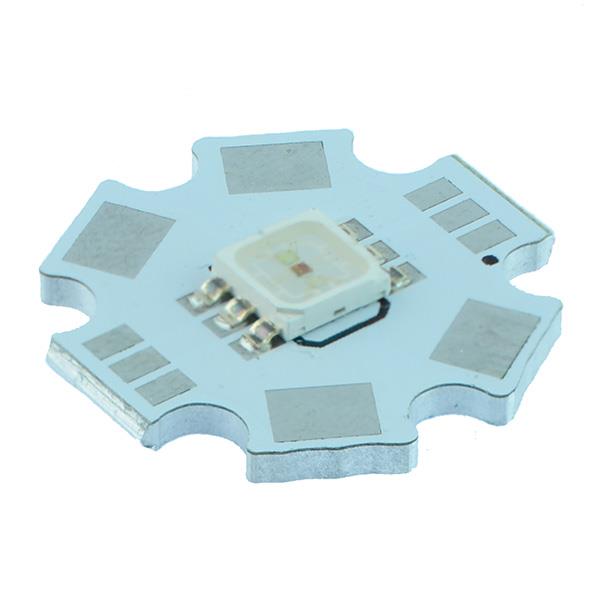

RGB 1W Star High Power SMD LED
SKU 480382
MPN: 480382
Availability:
235 in stock
Original price
£2.61
-
Original price
£2.61
Original price
£2.61
£2.61
£2.61
-
£2.61
Current price
£2.61
RGB high power 1W LED featuring red, green and blue dies providing high luminosity and excellent energy efficiency. The LED is mounted on a heatsink and is suitable for applications including automotive lighting, TVs, monitor backlights, traffic signals and many more.
Long lifespan Superior UV resistance Power dissipation: 1200mW Continuous forward current: 150mA Forward voltage: Red 2.0-2.4V, Green 3.0-3.2V, Blue 3.0-3.2V
Specification
| Back Order Lead Time | 45 Days |
| Colour | RGB |
| Forward Current | 150mA |
| Forward Voltage | Red 2-2.4V, Green 3-3.2V, Blue 3-3.2V |
| Luminous Flux | Red 35lm, Green 55lm, Blue 15lm |
| Mounting Style | Surface Mount |
| Number of Pins | 6 |
| Operating Temperature | -40°C to +80°C |
| Package | PCB Substrate |
| Packaging | Bulk |
| Power Dissipation | 1.2W |
| Power Rating | 1W |
| Viewing Angle | 120° |
| Wavelength | Red 625nm, Green 525nm, Blue 470nm |
