RGB 22mm Momentary Plastic Piezo Switch 12V IP68
by Langir
SKU 486505
MPN: PP-22FA1NOM3A
Availability:
11 in stock
Original price
£41.59
-
Original price
£41.59
Original price
£41.59
Inc VAT
£41.59
-
£41.59
Current price
£41.59
Inc VAT

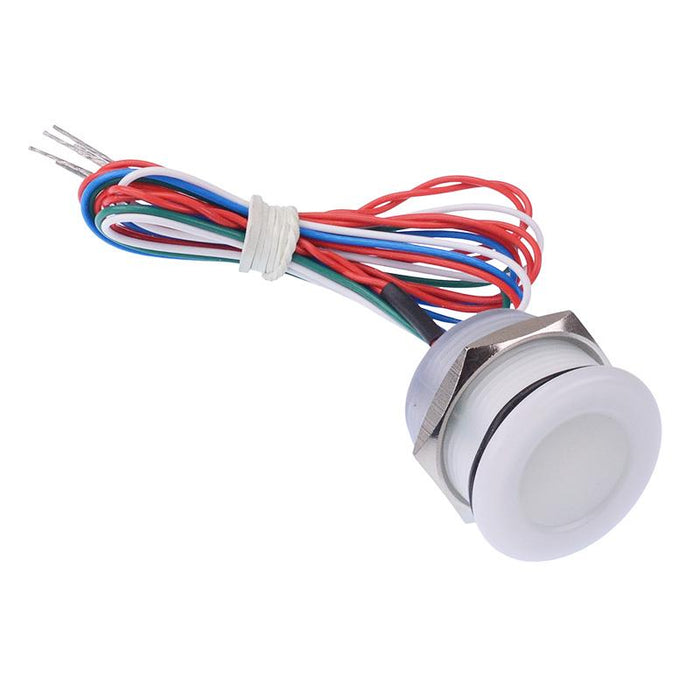

White plastic piezo switch featuring a RGB LED suitable for 12V, the switch features vandal proof solid state switching and provides excellent reliability. The switch is sealed to IP68 and can be used underwater, in harsh environments and whilst wearing gloves.
Momentary operation Panel cut-out: 22mm illumination voltage: 12V Rating: 200mA 24VAC/DC SPST NO contacts Protection level: IP68 30cm 26AWG flying leads Dimensions: 25 x 20mm (diameter x height)
Specification
| Actuation | Momentary |
| Back order lead time | 45 Days |
| Colour | RGB |
| Contact configuration | SPST |
| Contact rating | 0.2A 24VDC |
| Current rating | 0.2A |
| Illuminated | Yes |
| Illumination colour | RGB |
| Illumination voltage | 12VDC |
| Material | Plastic |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating force | 3-5N |
| Operating temperature | -20°C to +70°C |
| Panel cut out | 22mm |
| Protection level | IP68 |
| Switch operation | Off-(On) |
| Terminal type | Flying Leads |
| Voltage rating | 24VDC |
