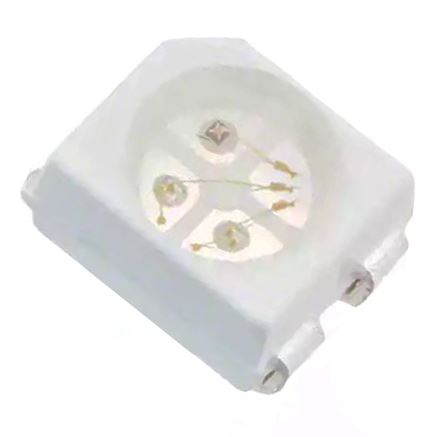

RGB 3528 SMD PLCC-4 LED Water Clear
by Toyo LED
SKU 311194
MPN: TY-3528RGB-R3
Availability:
2366 in stock
Original price
£0.22
-
Original price
£0.22
Original price
£0.22
Inc VAT
£0.22
-
£0.22
Current price
£0.22
Inc VAT
Surface mount LEDs in a 3528 package with a high luminous intensity suitable for a wide range of applications including backlighting and indicator uses.
Water clear lens 3528 PLCC-4 package 120° viewing angle UV resistant Dimensions: 3.5 x 2.8 x 1.9mm Supplied on tape packaging
Specification
| Back order lead time | 45 Days |
| Colour | RGB |
| Forward current | Red 30mA, Green 25mA, Blue 30mA |
| Forward voltage | Red 2.5V, Green 3.2V, Blue 3.2V |
| Height | 1.9mm |
| Length | 3.5mm |
| Lens colour | Clear |
| Luminous intensity | Red 400mcd, Green 1000mcd, Blue 350mcd |
| Moq | 5 |
| Mounting style | Surface Mount |
| Number of pins | 4 |
| Operating temperature | -40°C to 85°C |
| Package | 3528 |
| Packaging | Cut-Tape |
| Power dissipation | Red=60mW Green=95mW Blue=110mW |
| Viewing angle | 120° |
| Wavelength | Red 625nm, Green 520nm, Blue 470nm |
| Width | 2.8mm |
